Keysight P5004A аналізатор мережі

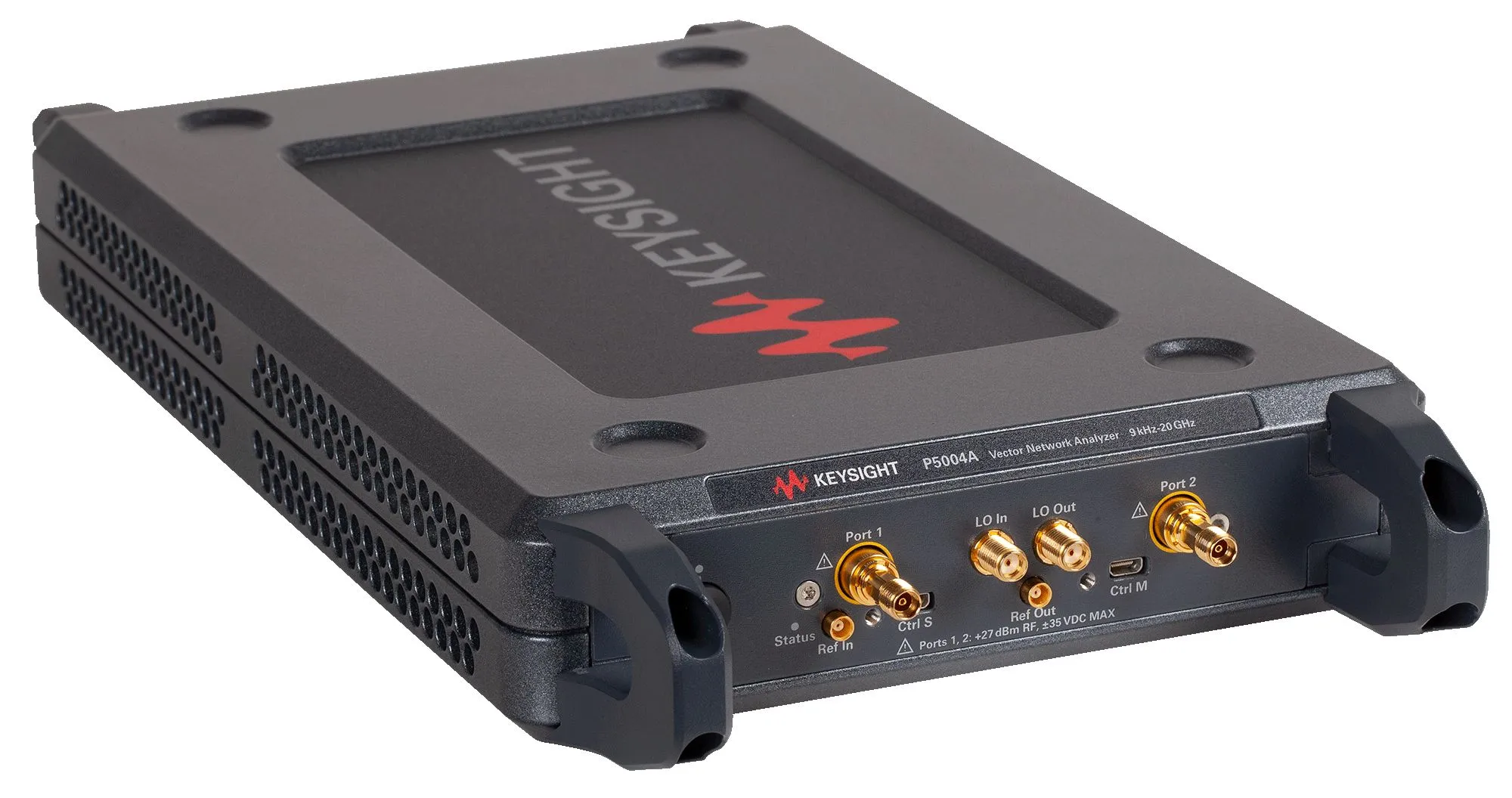

Keysight P5004A Vector Network Analyzer
Keysight P5004A is a compact, two-port vector network analyzer with USB connectivity, covering 9 kHz to 20 GHz for RF component testing and characterization.
Деталі продукту
| Модель | P5004A |
| Виробник | Keysight |
| Категорія | Векторні аналізатори мереж |
| Наявність | На замовлення |
Опис
Overview
The Keysight P5004A is a compact, faceless, two-port vector network analyzer that combines portability with high-performance RF measurement capabilities. Designed for testing passive components, amplifiers, mixers, and frequency converters, the P5004A covers frequencies from 9 kHz to 20 GHz with USB connectivity and external computer control. Part of the P50xxA Streamline Series, it delivers the same measurement science and performance as Keysight's high-performance PNA instruments in a streamlined, space-saving package.
Key Features
- 2-port vector network analyzer, 9 kHz to 20 GHz
- USB connectivity for external PC control
- Compact, faceless design dramatically reduces test setup size
- Best-in-class dynamic range, measurement speed, and trace noise performance
- Wide range of measurement applications for diverse RF testing needs
- Intuitive GUI identical to Keysight high-performance PNAs
- Fast calibration support with all Keysight ECal modules
- Excellent temperature stability and repeatability
Applications
- Passive component testing (filters, couplers, antennas)
- Amplifier characterization and validation
- Mixer measurement and analysis
- Frequency converter testing
- RF component development and qualification
- Manufacturing and production testing
Характеристики
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 3.5mm-Female (Plug) |
| Form Factor | USB |
Запит ціни
