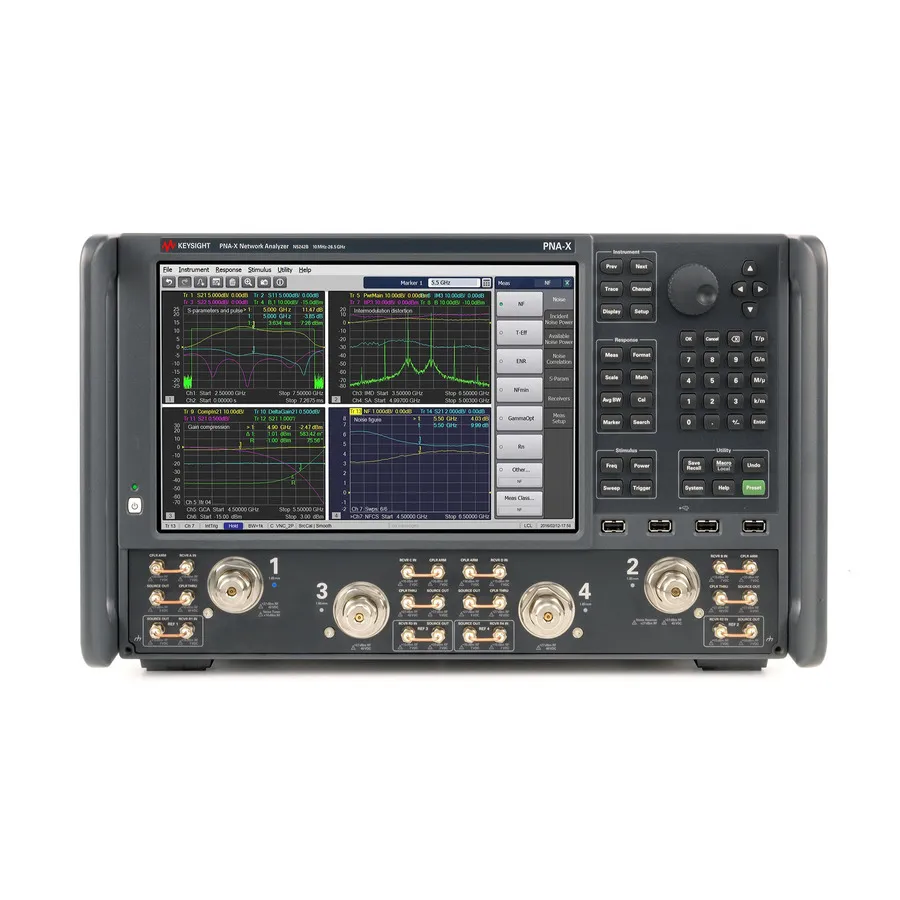

Keysight N5242B PNA-X мікрохвильовий аналізатор мереж

Overview

The Keysight N5242B is a highly integrated microwave network analyzer from the PNA-X series, combining a signal source, combiner, S-parameter and noise receivers, pulse modulators and generators, and flexible RF access switches into one comprehensive test platform. This benchtop analyzer is designed for both R&D and production environments, enabling measurement of linear and nonlinear active devices with a single connection to the device-under-test.

Key Features

• Frequency coverage: 900 Hz to 26.5 GHz
• 2 or 4-port configurations with one or two internal signal sources
• Integrated combiner, signal routing switches, and flexible RF access points
• S-parameter and noise receivers for comprehensive device characterization
• Pulse modulation and generation capabilities for dynamic testing
• Intuitive multi-touch display with advanced user interface
• Benchtop form factor replacing multiple equipment racks
• Support for linear and nonlinear device characterization

Applications

• Linear device characterization (S-parameters, CW and pulsed)
• Active device testing (amplifiers, mixers, frequency converters)
• Nonlinear measurements and X-parameter characterization
• Noise figure and gain measurements
• Gain compression and dynamic range analysis
• Intermodulation and harmonic distortion testing
• Antenna characterization and testing
• Millimeter-wave component evaluation
