Keysight N5224A мікрохвильовий аналізатор мереж

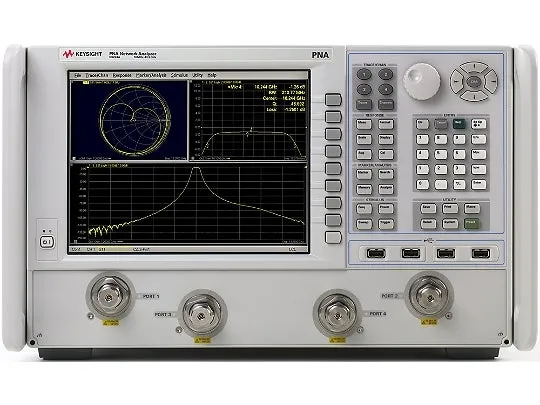

Keysight N5224A Microwave Network Analyzer
The Keysight N5224A is a PNA-series microwave network analyzer covering 900 Hz to 43.5 GHz, designed for high-performance characterization of passive and active RF components with superior S-parame...
Деталі продукту
| Модель | N5224A |
| Виробник | Keysight |
| Категорія | Векторні аналізатори мереж |
| Наявність | На замовлення |
Опис
Overview
The Keysight N5224A is a high-performance PNA-Series microwave network analyzer that extends measurement capability to 43.5 GHz. It is designed for comprehensive characterization of passive and active RF and microwave devices, including filters, duplexers, amplifiers, and frequency converters. The N5224A combines superior source and receiver performance with excellent stability and accuracy, making it suitable for component test, signal integrity analysis, and millimeter-wave applications.
Key Features
- Frequency range: 900 Hz to 43.5 GHz
- Maximum dynamic range: 127 dB
- High source output power: 13 dBm
- 2-port or 4-port configurations available
- Most accurate S-parameter measurements with wide power range
- Advanced measurement capabilities including noise figure and gain compression
Applications
- S-parameter measurements (CW and pulsed)
- Noise figure characterization
- Gain compression analysis
- Intermodulation and harmonic distortion measurement
- Conversion gain/loss testing
- Millimeter-wave component testing
- Material measurements
- Signal integrity analysis
- Antenna testing
Характеристики
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Benchtop |
