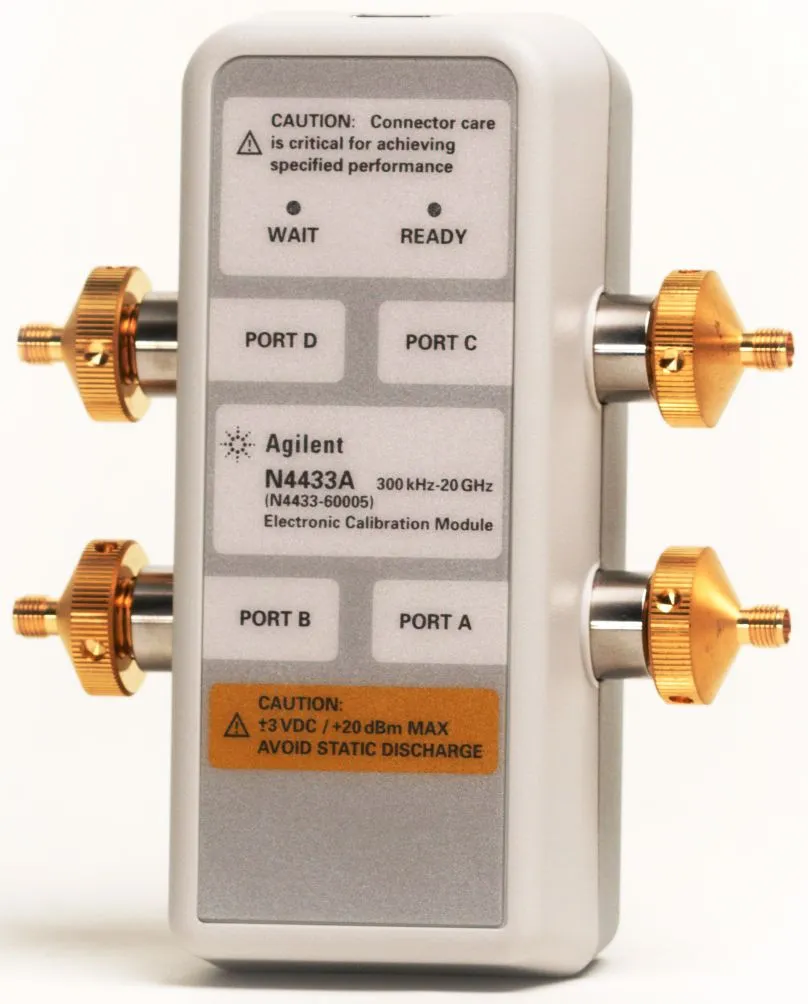

Keysight N4433A модуль RF електронної калібрування

Overview

The Keysight N4433A is a precision 4-port RF electronic calibration (ECal) module that extends to 20 GHz, making it suitable for higher-frequency applications than lower-band alternatives. Equipped with standard 3.5 mm female connectors, the module enables full 3- or 4-port calibration of vector network analyzers in less than half the time required by traditional mechanical calibration kits. The N4433A is fully controlled through a USB interface by Keysight PNA and ENA series network analyzers (PNA firmware revision 2.5 or higher required).

ECal modules function as transfer standards, maintaining factory calibration accuracy to the connected network analyzer. The technique significantly reduces connector wear and the associated maintenance costs while minimizing human error through automated firmware control.

Key Features

• 4-port precision RF ECal module with 3.5 mm female connectors
• Frequency coverage 300 kHz to 20 GHz
• Fast full 3- or 4-port calibration with single connection
• NIST traceable calibration accuracy comparable to mechanical kits
• USB interface for direct control from PNA and ENA series analyzers
• Reliable solid-state switching for durability
• Mixed connector options available (male/female per port)
• Reduced connector wear and lower long-term maintenance costs

Applications

• Vector network analyzer calibration and maintenance
• Device and component characterization up to 20 GHz
• Production test environments
• Filter and amplifier characterization
• Microwave circuit analysis and verification
