Keysight N1501A-202 гнучкий кабель 20 ГГц
Keysight N1501A-202 20 GHz Flexible Cable
Запитати ціну
Keysight N1501A-202 is a 1 m flexible cable for 20 GHz operation with 3.5 mm female connector, typical insertion loss 2.24 dB, for N1501A probe system.
Деталі продукту
| Модель | N1501A-202 |
| Виробник | Keysight |
| Категорія | Векторні аналізатори мереж |
| Наявність | На замовлення |
Опис
Overview

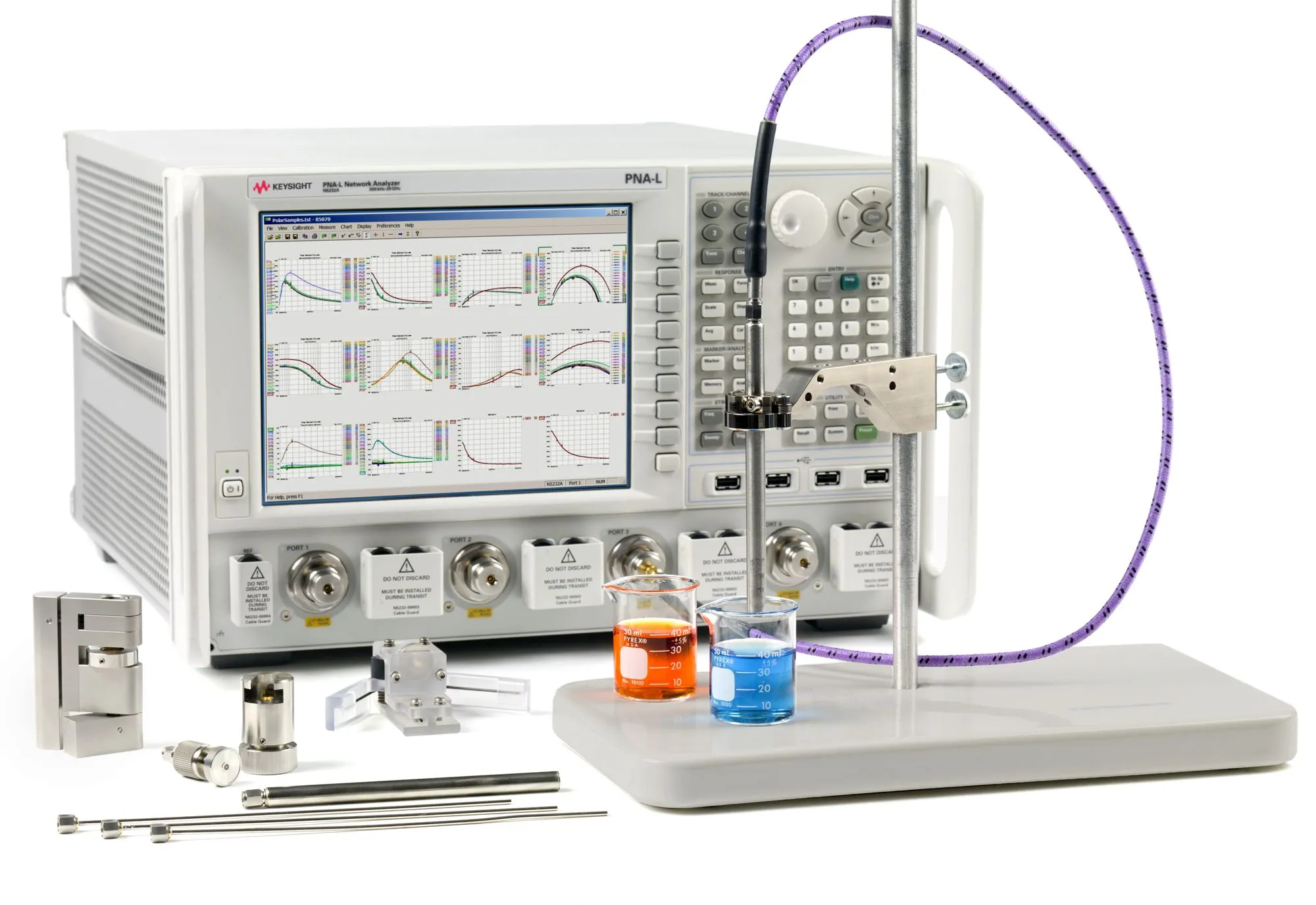

The Keysight N1501A-202 is a flexible measurement cable for the N1501A dielectric probe kit system. With 20 GHz bandwidth and low insertion loss characteristics, this cable provides reliable signal transmission for medium frequency dielectric measurements in laboratory and field applications.
Specifications
- Length: 1 meter
- Connector: 3.5 mm female
- Maximum frequency: 26.5 GHz
- Typical VSWR: 1.45:1
- Typical insertion loss: 2.24 dB
- Typical phase stability: ±3°
- Operating temperature range: -40°C to +125°C
Applications
- Dielectric material measurements in 20 GHz range
- Laboratory characterization of RF materials
- Process monitoring and quality assurance in electronic component manufacturing
Характеристики
| High Frequency (range) | 10GHz <= 20GHz |
| Connector Type | 3.5mm-Female (Plug) |
