Keysight N1501A набір діелектричних зондів

Overview

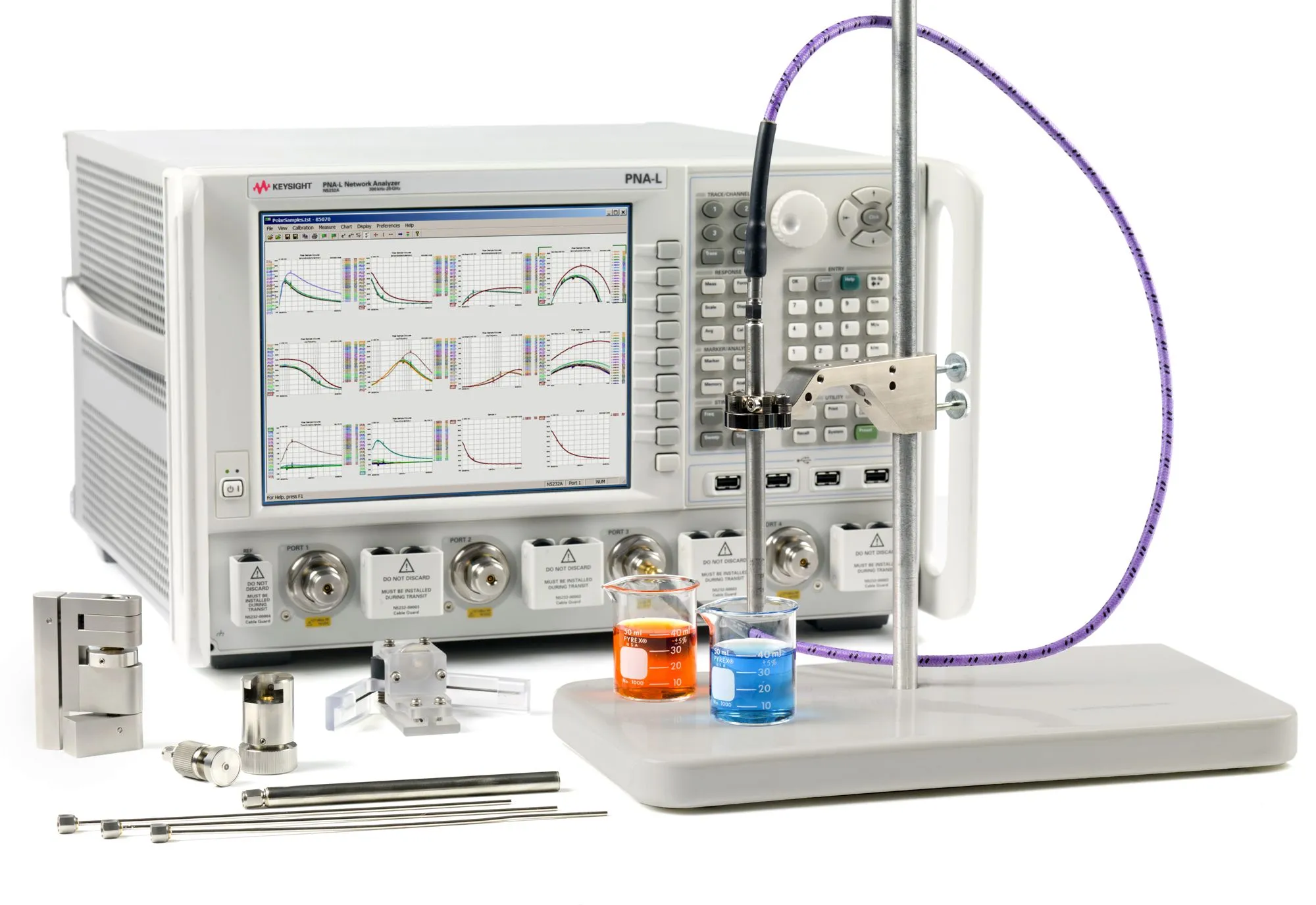

The Keysight N1501A dielectric probe kit works with the N1500A materials measurement software suite to determine intrinsic electromagnetic properties of dielectric materials. By measuring these properties, which are governed by molecular structure, engineers gain critical insight into material characteristics useful across multiple industries and product lifecycle stages.

With frequency coverage from 200 MHz to 50 GHz depending on probe option selected, the N1501A is useful in design, incoming inspection, process monitoring, and quality assurance. It provides essential information for RF and microwave components and can characterize biomass, bulk density, bacterial content, and chemical concentration through their electromagnetic signatures.

Key Features

• Measures complex permittivity of dielectric materials
• Compatible with Keysight N1500A materials measurement suite with Option 004 coaxial probe method
• Optimized for liquids and conformable solids
• Flexible configuration with selectable probes and accessories to match application requirements and budget

Included Accessories

• Performance probe and performance probe short
• High temperature probe, short, and conductive elastomer disk
• Slim form probes (quantity 3) with holder and O-rings (quantity 6)
• Connector saver adapter for 2.4 mm PSC connector protection
