Keysight E5080B аналізатор векторної мережи

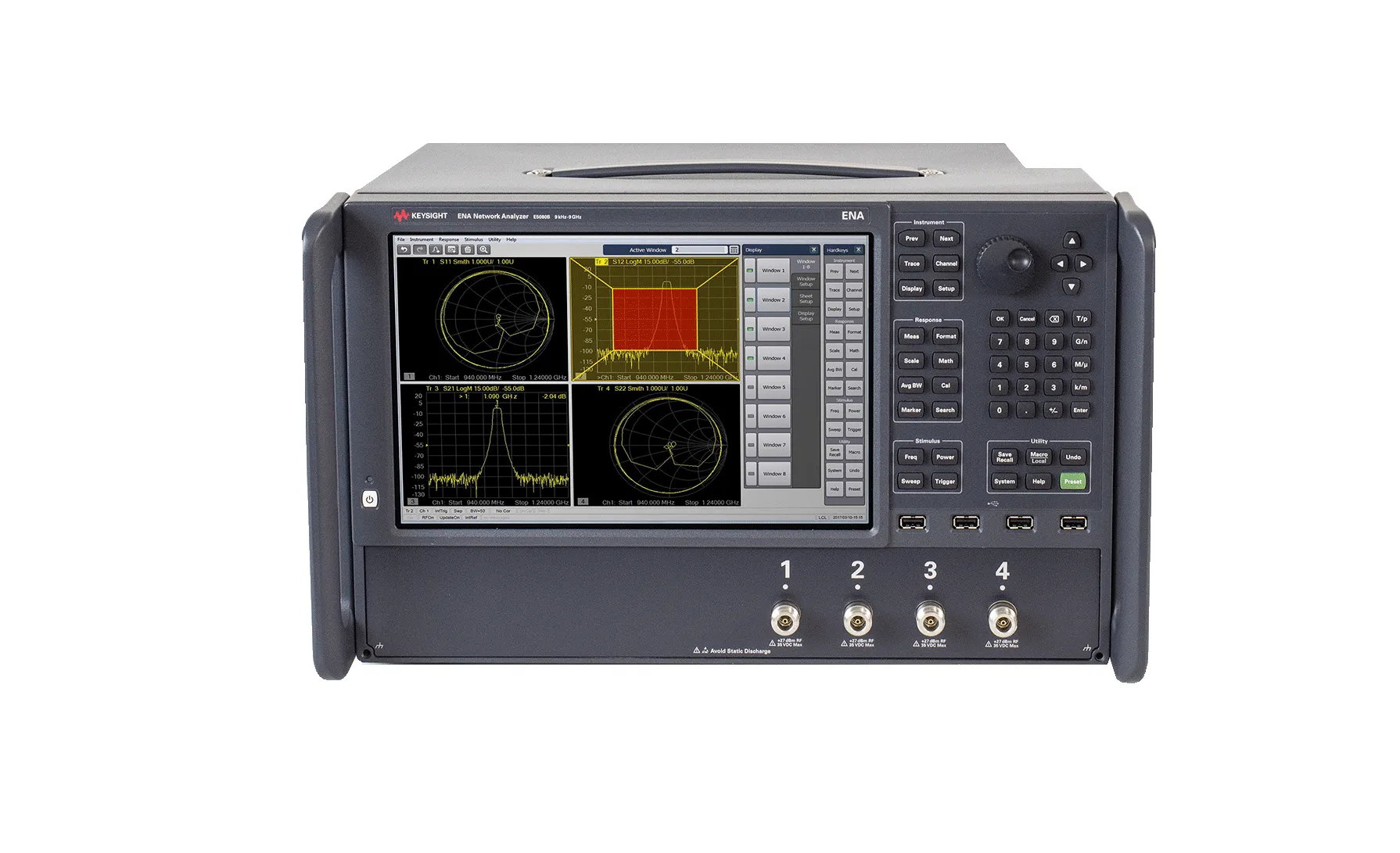

Keysight E5080B Vector Network Analyzer
Запитати ціну
Keysight E5080B vector network analyzer with 9 kHz to 53 GHz coverage, 140+ dB dynamic range, and integrated DC sources, bias tees, and pulse generators.
Деталі продукту
| Модель | E5080B |
| Виробник | Keysight |
| Категорія | Векторні аналізатори мереж |
| Наявність | На замовлення |
Опис
Overview
The Keysight E5080B is a mid-range vector network analyzer that brings R&D performance up to 53 GHz with best-in-class dynamic range, trace noise, and temperature stability. It enables complete device characterization for passive components, amplifiers, mixers, and frequency converters with integrated features for flexible high-power testing.
Key Features
- Frequency coverage: 9 kHz to 4.5/6.5/9/14/20 GHz or 100 kHz to 26.5/32/44/53 GHz
- 2 and 4-port models
- System dynamic range: >140 dB
- Output power: 10 dBm
- Measurement speed: 1.6 ms (201 points, 1 sweep)
- Temperature stability: 0.005 dB/°C (typical)
- Harmonics: -25 dBc (typical)
- DANL @1 GHz: -150 dBm/Hz (typical)
- Integrated DC sources, bias tees, pulse generators, and pulse modulators (optional, up to 20 GHz)
- Internal second source on 4-port models (optional)
- Intuitive GUI matching high-performance network analyzer UI
Applications
- S-parameter measurements
- Signal integrity analysis
- Balanced measurements
- Passive and active component characterization
- Amplifier testing
- Mixer and frequency converter evaluation
- Cable, connector, antenna, and filter analysis
- Spectrum analysis and pulsed-RF measurements
Характеристики
| High Frequency (range) | 1GHz <= 10GHz |
| High Frequency (range) | 10GHz <= 20GHz |
| High Frequency (range) | 50GHz <= 85GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Form Factor | Benchtop |
