Keysight E5072A аналізатор векторної мережи

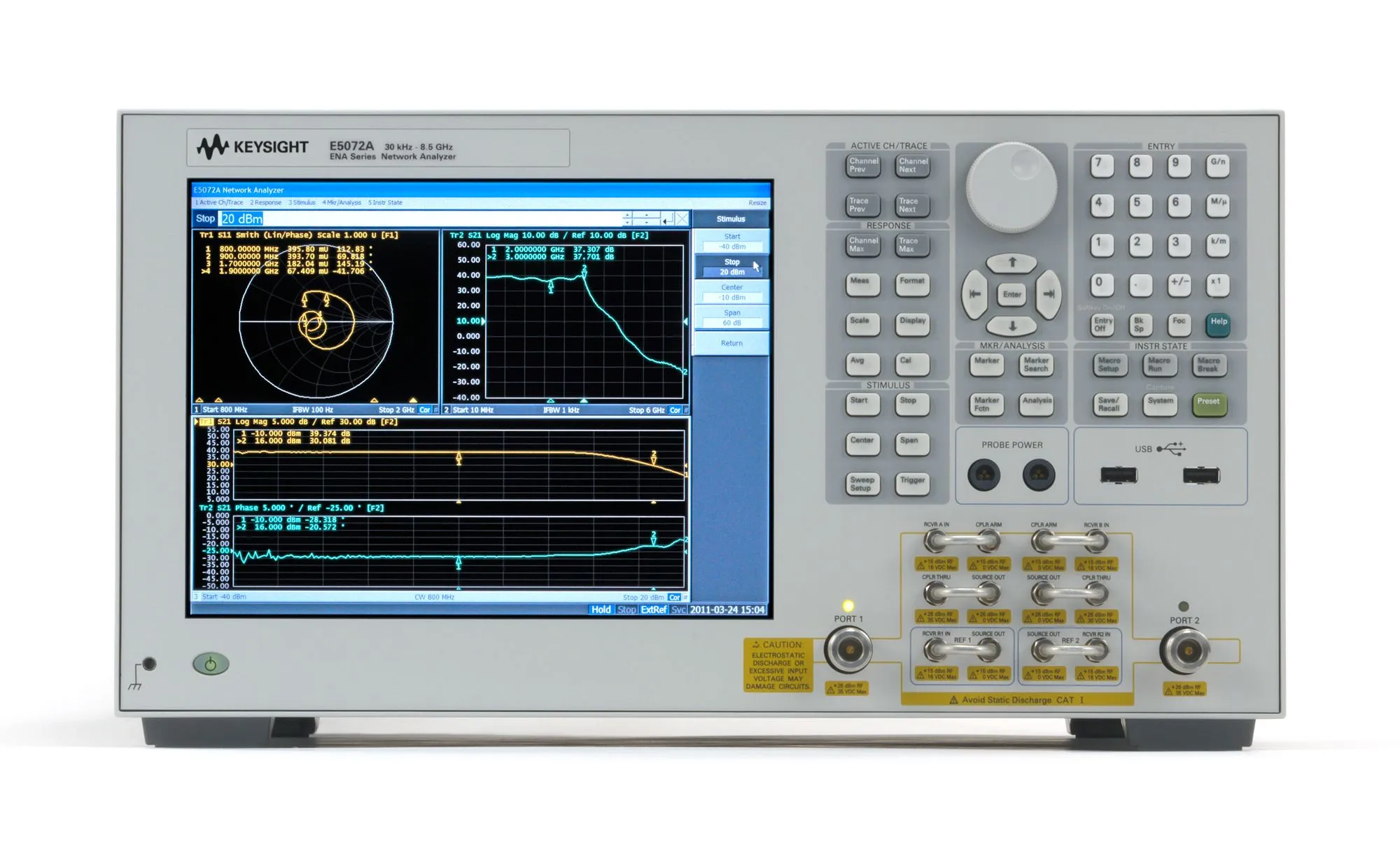

Keysight E5072A Vector Network Analyzer
Запитати ціну
Keysight E5072A ENA series vector network analyzer with 30 kHz to 8.5 GHz coverage, 151 dB dynamic range, and 7 ms measurement speed.
Деталі продукту
| Модель | E5072A |
| Виробник | Keysight |
| Категорія | Векторні аналізатори мереж |
| Наявність | На замовлення |
Опис
Overview
The Keysight E5072A is an ENA series network analyzer that delivers new standards in versatility, speed, and accuracy for RF and microwave measurement applications. It is suitable for full performance characterization of passive and active components and is designed for the most demanding requirements from R&D and manufacturing.
Key Features
- Frequency range: 30 kHz to 4.5 GHz or 8.5 GHz
- 2-port configuration
- Dynamic range: 130 dB / 151 dB (direct receiver access)
- Measurement speed: 7 ms
- Temperature stability: 0.005 dB/°C
- Source power range: -109 to +20 dBm for linear and nonlinear device characterization
Applications
- Antennas
- Filters
- High-power amplifiers
- Passive and active component characterization
Характеристики
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
