Keysight 85131H гнучкий кабель

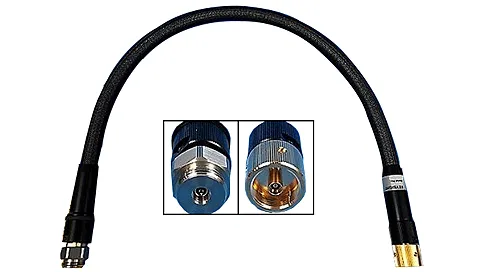

Keysight 85131H Flexible Cable
Запитати ціну
Keysight 85131H flexible cable with dc to 26.5 GHz frequency range and 16 dB return loss for high-precision network analyzer measurements.
Деталі продукту
| Модель | 85131H |
| Виробник | Keysight |
| Категорія | Векторні аналізатори мереж |
| Наявність | На замовлення |
Опис
Overview
The Keysight 85131H is a flexible cable assembly 62.2 cm long with a 3.5 mm female to 3.5 mm male connector configuration. The flexible design allows for convenient routing while the specialized female connector maintains precise connection to network analyzer test ports with excellent return loss performance.
Key Features
- Frequency range: dc to 26.5 GHz
- Return loss: ≥ 16 dB
- Insertion loss: 0.25 * sqrt(f) + 0.2 dB (test port), 1.5 dB max (device connector)
- Phase stability: < 0.12 dB with phase response 0.13° * f + 0.5° (where f is frequency in GHz)
- Cable length: 62.2 cm (24.5 in)
- Flexible construction rated for 3 inch bend radius
Applications
- Vector network analyzer S-parameter characterization
- Network analysis in space-constrained setups
- High-frequency RF and microwave testing
Характеристики
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
