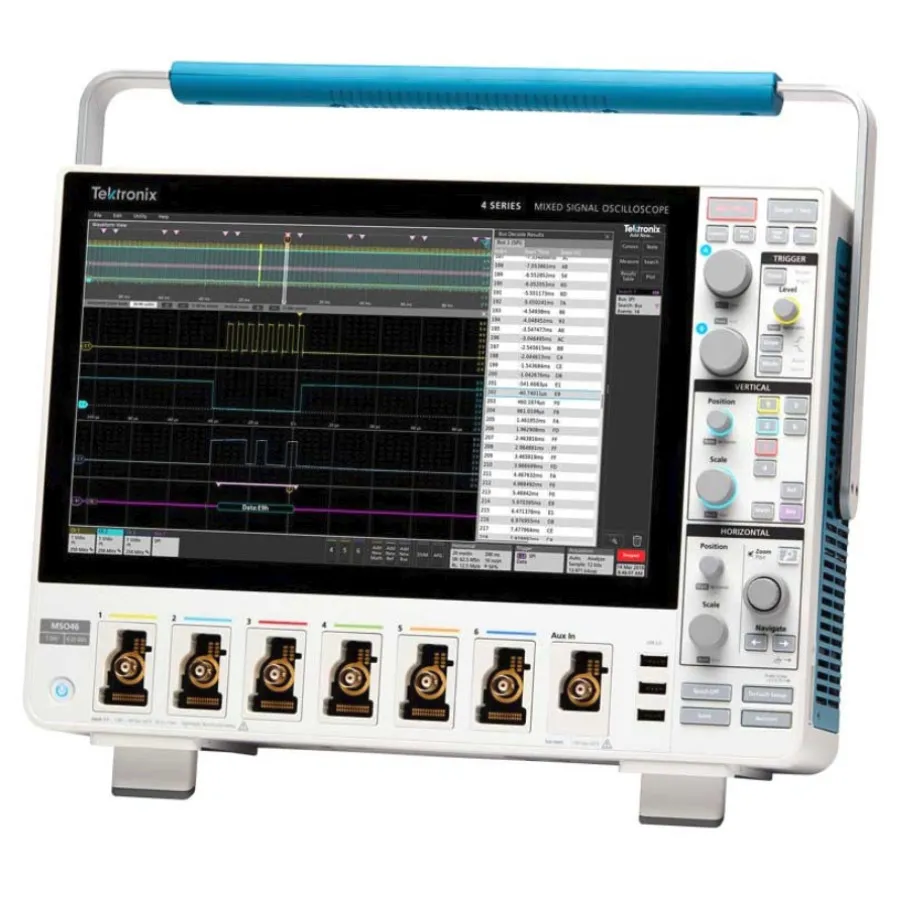

Tektronix MSO46B змішаний сигнальний осцилограф

Overview

The Tektronix MSO46B 500 MHz variant is a 6-channel mixed signal oscilloscope ideal for RF and high-speed digital design applications. Part of the 4 Series B line, it features an upgraded processor ensuring faster operation and precise measurements with industry-leading 12-bit analog-to-digital converters (ADCs) that deliver 16 times greater vertical resolution compared to standard 8-bit oscilloscopes. With 500 MHz bandwidth and 6.25 GS/s sampling rate, it excels at capturing high-speed signals and detecting subtle timing issues.

The innovative FlexChannel technology allows each of the six analog input channels to function as an analog channel, eight digital logic inputs (with optional TLP058 probe), or provide simultaneous analog and spectrum views with independent controls. The integrated Spectrum View feature eliminates the need for a separate spectrum analyzer, enabling simultaneous time- and frequency-domain measurements on a single platform.

Key Features

• 6 analog channels with 12-bit ADC resolution (up to 16-bit in Hi-Res mode)
• 500 MHz bandwidth with 6.25 GS/s sampling rate on all channels simultaneously
• Up to 48 digital logic channels via FlexChannel and TLP058 probes (sold separately)
• 13.3-inch full HD (1920 × 1080) capacitive touchscreen with multi-touch gesture support
• Record lengths: 31.25 Mpoints per channel (62.5 Mpoints optional)
• Waveform capture rate exceeding 500,000 waveforms/second for detection of rare events
• FastFrame segmented memory acquisition with trigger rates >5,000,000 waveforms/second
• 36 built-in measurements and dual-domain analysis (time and frequency via Spectrum View)
• Integrated RF measurements: Channel Power (CHP), Adjacent Channel Power Ratio (ACPR), Occupied Bandwidth (OBW)
• Digital Phosphor technology with intensity grading for visualization of rare transients
• Multiple trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger
• Connectivity: 3 × USB2 Host, 2 × USB3 Host, 1 × USB Device, 1 × Ethernet
• Field-upgradeable with optional 50 MHz arbitrary/function generator and serial protocol decoding
• 1-year warranty covering all parts and labor

Applications

• RF and spectrum analysis
• High-speed digital design and validation
• Power converter and motor drive characterization
• Signal integrity and timing analysis
• Embedded systems debugging with RF capability
• Device validation and system integration

Included Accessories

• One low-capacitance 10X passive probe for each of the six input channels
• Probe accessory kit
• Installation and safety manual
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
