Tektronix MSO46B змішаний сигнальний осцилограф

Overview

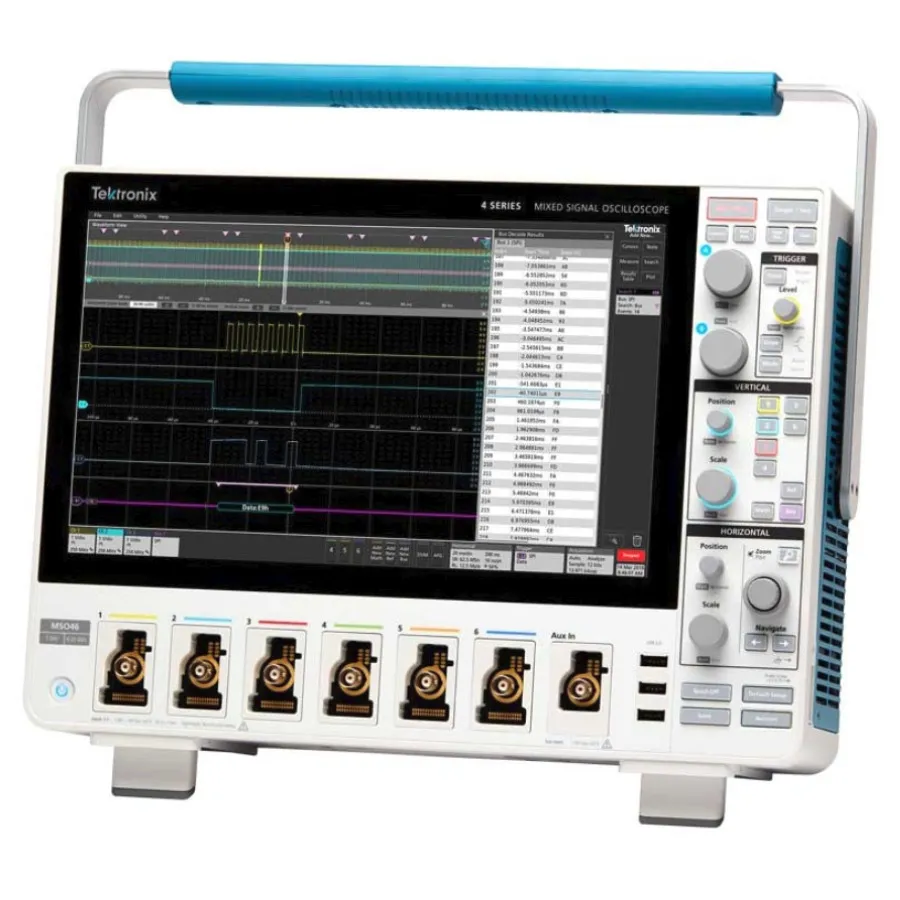

The Tektronix MSO46B 350 MHz variant is a 6-channel mixed signal oscilloscope that provides excellent mid-range bandwidth for embedded systems and digital circuit debugging. Part of the 4 Series B line, it features a faster processing platform that doubles responsiveness and 12-bit analog-to-digital converters (ADCs) delivering 16 times greater vertical resolution than standard 8-bit oscilloscopes. With 6.25 GS/s sampling rate and 13.3-inch full HD touchscreen, it combines performance with ease of use for various test and measurement applications.

The innovative FlexChannel technology allows each of the six analog input channels to function as an analog channel, eight digital logic inputs (with optional TLP058 probe), or provide simultaneous analog and spectrum views with independent controls. This versatility supports embedded systems debugging, power converter testing, and complex multi-signal analysis.

Key Features

• 6 analog channels with 12-bit ADC resolution (up to 16-bit in Hi-Res mode)
• 350 MHz bandwidth with 6.25 GS/s sampling rate on all channels simultaneously
• Up to 48 digital logic channels via FlexChannel and TLP058 probes (sold separately)
• 13.3-inch full HD (1920 × 1080) capacitive touchscreen with multi-touch gesture support
• Record lengths: 31.25 Mpoints per channel (62.5 Mpoints optional)
• Waveform capture rate exceeding 500,000 waveforms/second for detection of rare events
• FastFrame segmented memory acquisition with trigger rates >5,000,000 waveforms/second
• 36 built-in measurements and dual-domain analysis (time and frequency via Spectrum View)
• Digital Phosphor technology with intensity grading for visualization of rare transients
• Multiple trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger
• Connectivity: 3 × USB2 Host, 2 × USB3 Host, 1 × USB Device, 1 × Ethernet
• Field-upgradeable with optional 50 MHz arbitrary/function generator and serial protocol decoding
• 1-year warranty covering all parts and labor

Applications

• Embedded systems debugging and validation
• Power supply and motor drive testing
• Digital circuit and signal integrity analysis
• RF and spectrum measurements
• System integration and device validation

Included Accessories

• One low-capacitance 10X passive probe for each of the six input channels
• Probe accessory kit
• Installation and safety manual
• Front cover with integrated accessory pouch
• Power cord
• Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration
