Siglent SDS5036X HD цифровий осцилограф

Overview

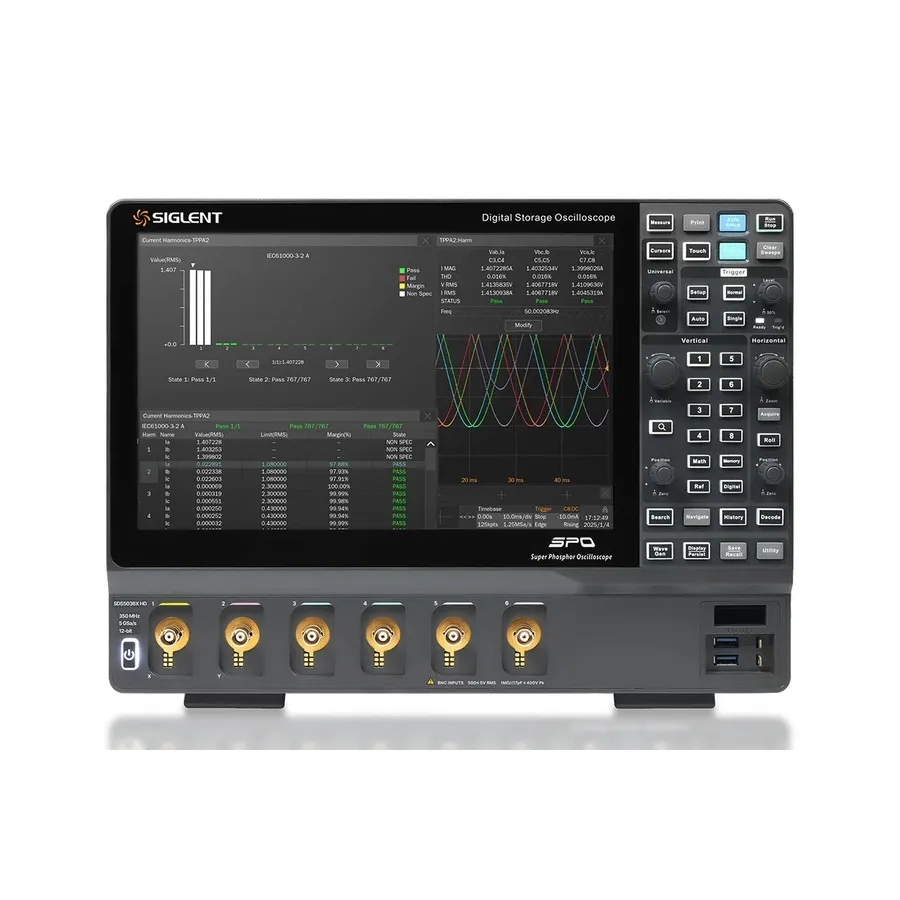

The Siglent SDS5036X HD is a 12-bit, 6-channel high-resolution digital storage oscilloscope engineered for advanced signal analysis and complex multi-channel measurements. With 350 MHz bandwidth and 5 GSa/s sampling rate delivering up to 2.5 Gpts memory per channel, it provides exceptional signal clarity and detail. The HD 1280×800 capacitive touchscreen, multi-window display, and comprehensive connectivity options make it ideal for laboratory environments requiring simultaneous analysis of multiple signals.

Key Features

• 12-bit ADC (Analog-to-Digital Converter) with low noise floor (140 μVrms @ 1 GHz typical)
• 350 MHz bandwidth with 6 analog channels plus external trigger
• 5 GSa/s real-time sampling with 2.5 Gpts maximum waveform length per channel
• 160,000 waveforms/s capture rate in normal mode (650,000 wfm/s in sequence mode)
• Intelligent triggering modes: edge, slope, pulse, window, runt, interval, dropout, pattern, qualified, Nth edge, setup/hold, delay, and video trigger with zone trigger capability
• Serial bus triggering and decoding for I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, and ARINC429
• 60+ automated measurements with statistics, histogram, track, trend, and gating analysis
• 8 math traces with 8 Mpts FFT, filtering, arithmetic operations, integration, differentiation, and formula editor
• History waveform recording with up to 170,000 frame capacity for extended event capture
• Segmented acquisition (Sequence) mode for triggering and capturing multiple qualifying events
• Power analysis, three-phase power measurement, Bode plot generation, and hardware-based mask testing
• Optional 16 digital channels (SPL2016 probe) for logic and mixed-signal analysis
• USB 3.0 Host/Device, 1000M LAN, HDMI output, and 10 MHz reference input/output
• Built-in webserver for remote control and external mouse/keyboard support

Applications

• Wide bandgap semiconductor (SiC, GaN) device characterization with high-speed transient capture
• Three-phase power system analysis and power electronics testing
• Multi-channel signal acquisition for automotive and industrial diagnostics
• Complex protocol analysis with simultaneous digital and analog measurement
• Advanced research and development in signal integrity and EMI/EMC testing
• Educational laboratory and research facility instrument

Included Accessories

• 1 passive probe per channel (6 total)
• USB cable
• Wireless mouse
• Power cord
• Quick start guide
• Certificate of calibration
