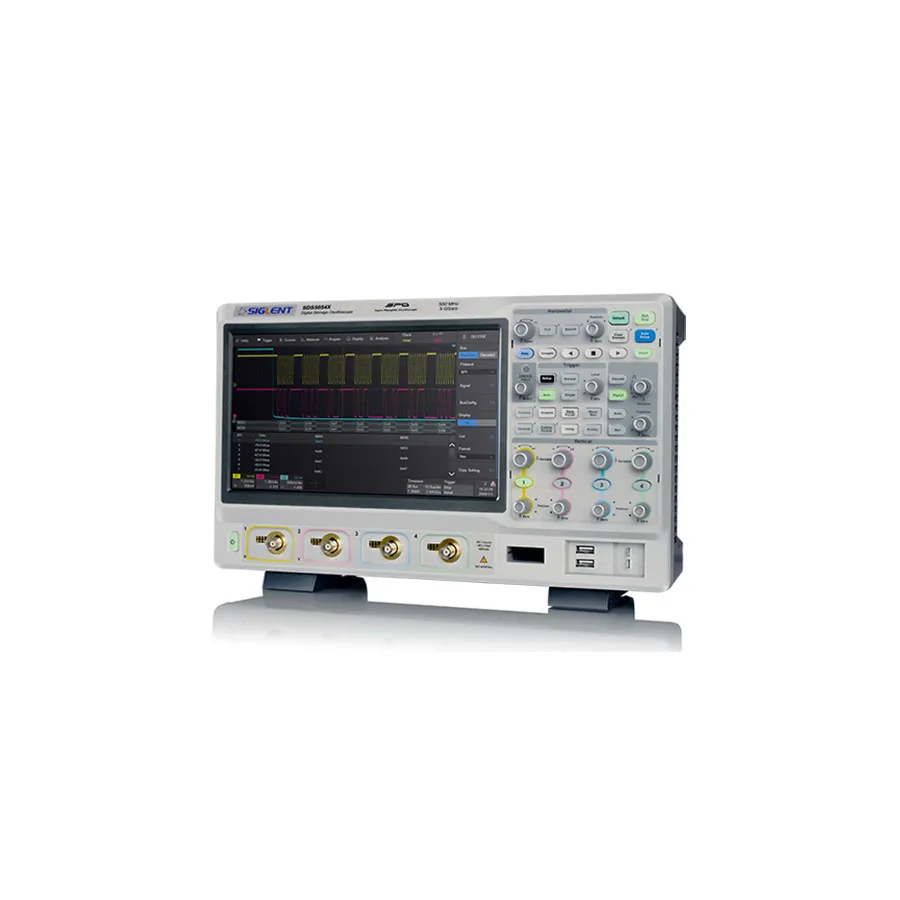

Siglent SDS5034X цифровий осцилограф

Overview

The Siglent SDS5034X is a 4-channel digital storage oscilloscope from the SDS5000X series, featuring 350 MHz bandwidth and 5 GSa/s real-time sampling rate. Built with Siglent's SPO (Super Phosphor Oscilloscope) technology, it provides 256-level intensity grading display and a large 10.1-inch capacitive touchscreen for intuitive control. The instrument includes an innovative digital trigger system with high sensitivity and low jitter, supporting multiple powerful triggering modes for complex signal capture and analysis.

Key Features

• 350 MHz bandwidth with 4 analog channels plus external trigger input
• 5 GSa/s real-time sampling rate with up to 250 Mpts memory per channel
• 10.1-inch capacitive touchscreen (1024×600) with multi-touch gesture support
• 110,000 waveforms/s normal capture rate (500,000 wfm/s in sequence mode)
• Serial bus triggering and decoding for I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, and MIL-STD-1553B protocols
• Over 55 automated parameter measurements with histogram, trend, and statistics display
• History waveform recording with up to 170,000 frame capacity
• Multiple intelligent trigger types: edge, slope, pulse, window, runt, interval, dropout, pattern, and zone trigger
• 8-in-1 integrated instruments: 16-channel logic analyzer, 25 MHz AWG, template test, digital multimeter, Bode plot, power analysis, counter, and frequency meter
• Remote control via webserver, mouse, and external keyboard with SCPI programming support

Applications

• Signal analysis and characterization in research and education laboratories
• Digital circuit debugging and embedded systems development
• Serial protocol analysis and validation for microcontroller and communication circuits
• Power electronics and switching transient measurement
• Automated test equipment integration via SCPI commands and LAN connectivity
