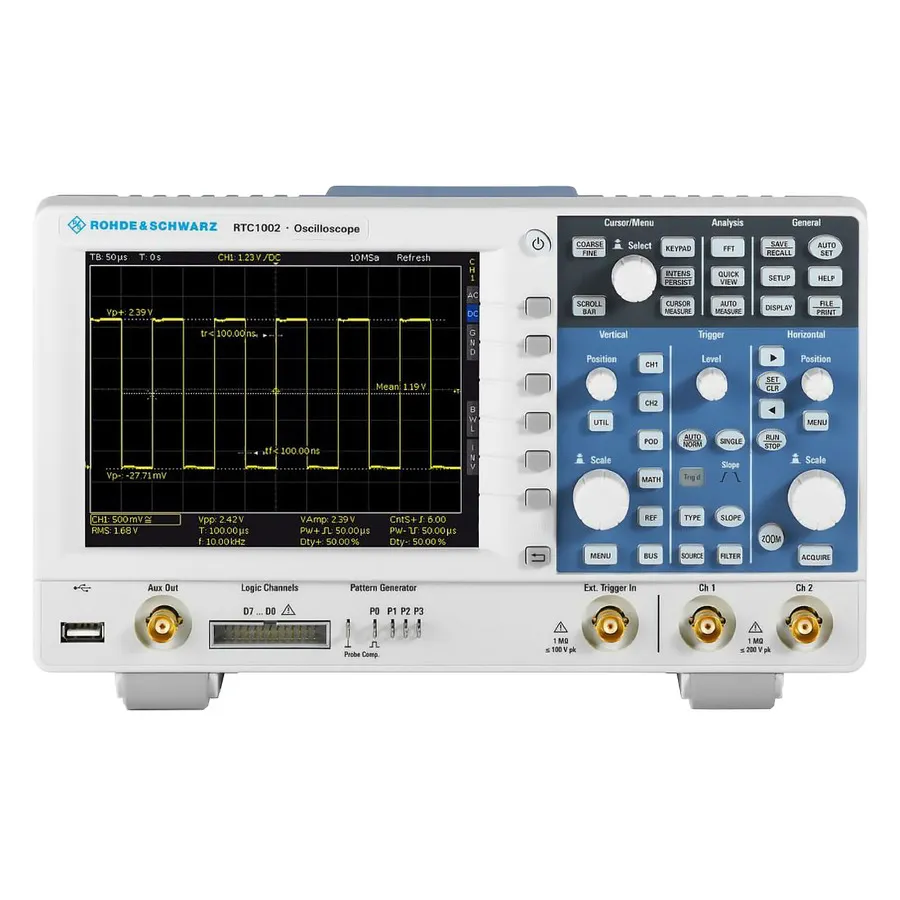

Rohde & Schwarz RTC1K-102 комплект цифрового осцилографа

Overview

The Rohde & Schwarz RTC1K-102 is a comprehensive digital oscilloscope bundle providing professional-grade measurement and analysis capabilities in a single compact instrument. The bundle includes a 2-channel 100 MHz oscilloscope, bandwidth upgrade option, and integrated waveform generator. With its multi-function architecture and modular upgrade capability, it serves embedded developers, service technicians, educators, and field engineers who require versatile test and measurement tools.

Key Features

• 100 MHz bandwidth for extended frequency range coverage
• 2 analog channels with up to 2.5 Gsamples/s interleaved sampling rate
• 2 Msample memory depth for extended waveform capture
• State-of-the-art low-noise A/D converters for precision measurements
• 6.5-inch VGA color display at 640 x 480 pixel resolution
• 10,000+ waveforms/s update rate for real-time responsive measurements
• Integrated waveform and pattern generator (RTC-B6) up to 50 Mbit/s
• Multiple waveform options: sine, square/pulse, ramp, noise, and 4-bit patterns
• Predefined protocol patterns for I2C, SPI, UART, CAN, and LIN
• X-in-1 functionality including logic analyzer, protocol analyzer, frequency analyzer, pattern generator, function generator, digital voltmeter, and component tester
• Comprehensive automatic measurement functions with statistical analysis
• Mask testing, FFT analysis, math operations, and cursor-based measurements
• Software upgrade capability for long-term investment protection and expanding functionality

Applications

• Embedded systems development and debugging
• Electronic equipment service and maintenance
• Educational demonstrations and student training
• Signal integrity analysis and troubleshooting
• Prototype hardware design and validation
