TekBox TBPCP4-50H50 зонд контролю імпульсного RF струму

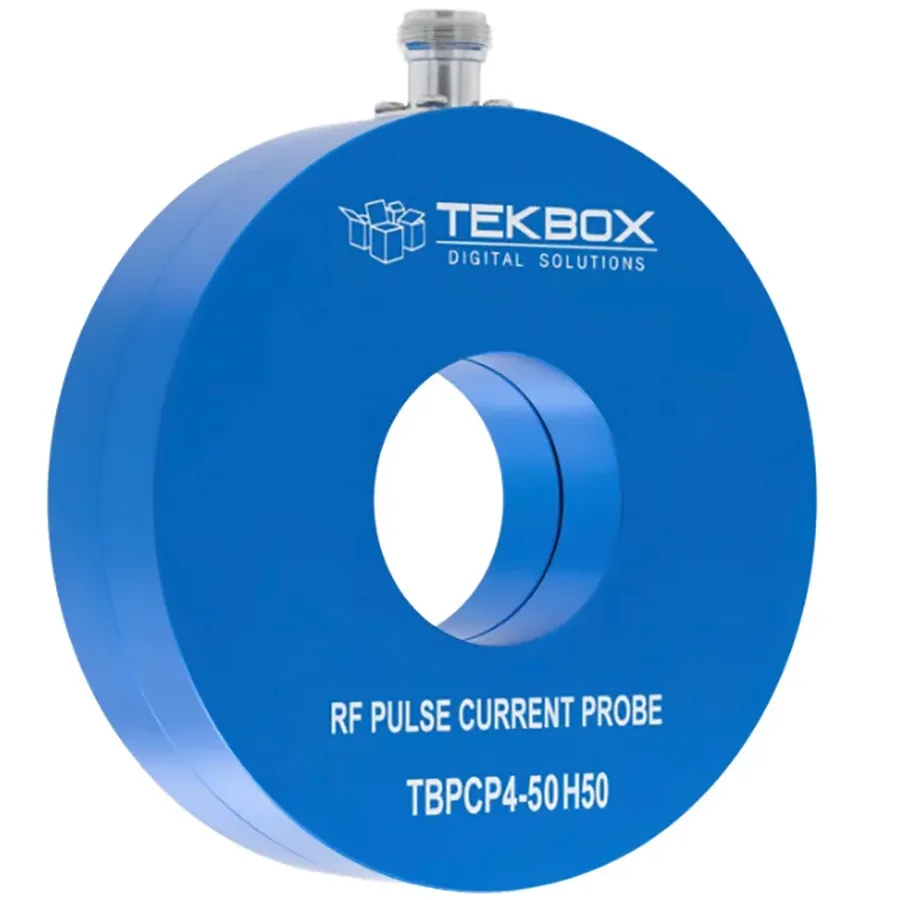

TekBox TBPCP4-50H50 RF Pulse Current Monitoring Probe
Запитати ціну
TekBox TBPCP4-50H50 is an RF pulse current monitoring probe with 50 Hz to 50 MHz bandwidth, 2500A peak current capacity, and 46 mm aperture for mid-range frequency measurements.
Опис
Overview
The TekBox TBPCP4-50H50 is an RF pulse current monitoring probe designed for surge and RF pulse current monitoring in the time domain. It features a characterized frequency range from 0.1 Hz to 100 MHz with a 3 dB bandwidth of 50 Hz to 50 MHz. The 46 mm aperture provides versatility for various conductor sizes while maintaining balanced performance with transfer impedance of 0.25 V/A into 50 Ω loads and 0.5 V/A into high-impedance loads.
Key Features
- 3 dB bandwidth: 50 Hz to 50 MHz
- Maximum pulse current: 2500A
- Transfer impedance: 0.25 V/A (50 Ω), 0.5 V/A (high Z)
- Rise time: < 10 ns
- Aperture diameter: 46 mm
- Maximum RMS AC current: 20A
- Droop rate: 7 %/ms
- N female connector with BNC-female adapter included
Applications
- Surge current monitoring in time domain
- RF pulse current measurement and analysis
- Broadband pulse characterization
Характеристики
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP4 Series |
