TekBox TBPCP4-1H30 зонд контролю імпульсного RF струму

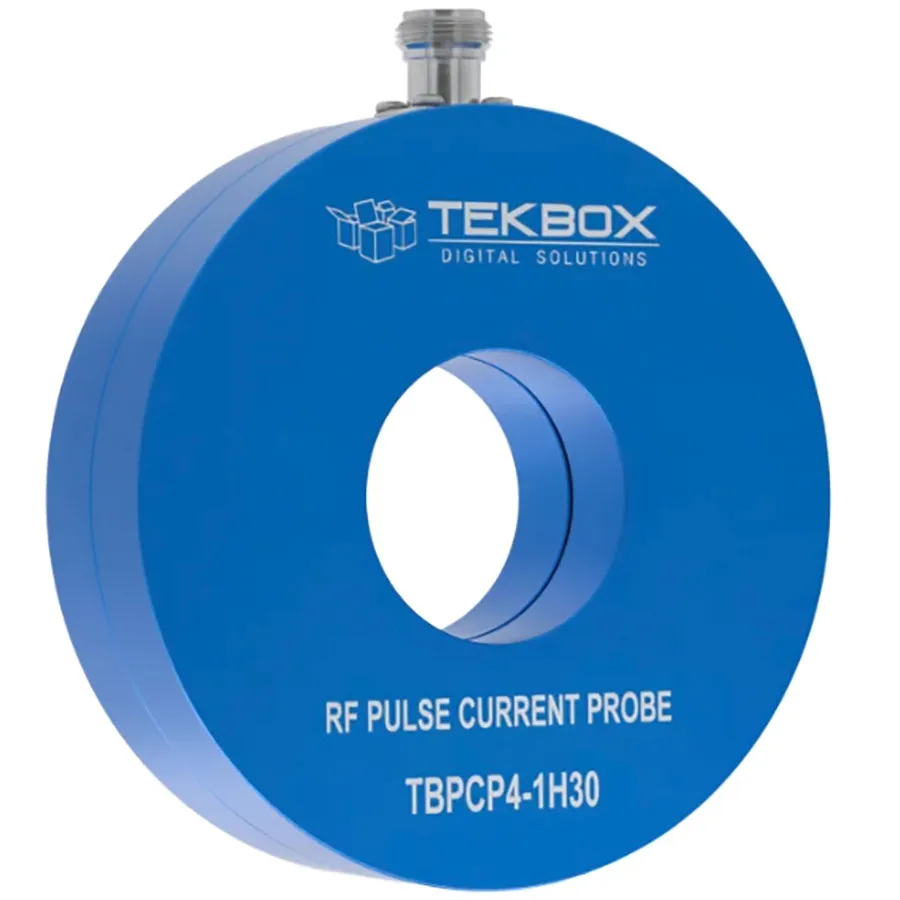

TekBox TBPCP4-1H30 RF Pulse Current Monitoring Probe
TekBox TBPCP4-1H30 is an RF pulse current monitoring probe with 1 Hz to 30 MHz bandwidth, 5000A peak current rating, and 46 mm aperture for low-frequency pulse measurements.
Опис
Overview
The TekBox TBPCP4-1H30 is an RF pulse current monitoring probe designed for measuring high-amplitude pulse currents in the time domain. It features a characterized frequency range from 0.1 Hz to 100 MHz with a 3 dB bandwidth of 1 Hz to 30 MHz, making it well-suited for low-frequency surge measurements. With a maximum pulse current rating of 5000A and 46 mm aperture, it offers excellent sensitivity with transfer impedance of 0.05 V/A into 50 Ω loads and 0.1 V/A into high-impedance loads.
Key Features
- 3 dB bandwidth: 1 Hz to 30 MHz
- Maximum pulse current: 5000A
- Transfer impedance: 0.05 V/A (50 Ω), 0.1 V/A (high Z)
- Rise time: < 10 ns
- Aperture diameter: 46 mm
- Maximum RMS AC current: 100A
- Droop rate: 0.2 %/ms
- N female connector with BNC-female adapter included
Applications
- High-amplitude pulse current measurement
- Low-frequency surge monitoring
- Power delivery system testing
Характеристики
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP4 Series |
