TekBox TBPCP3-2H40 зонд контролю імпульсного RF струму

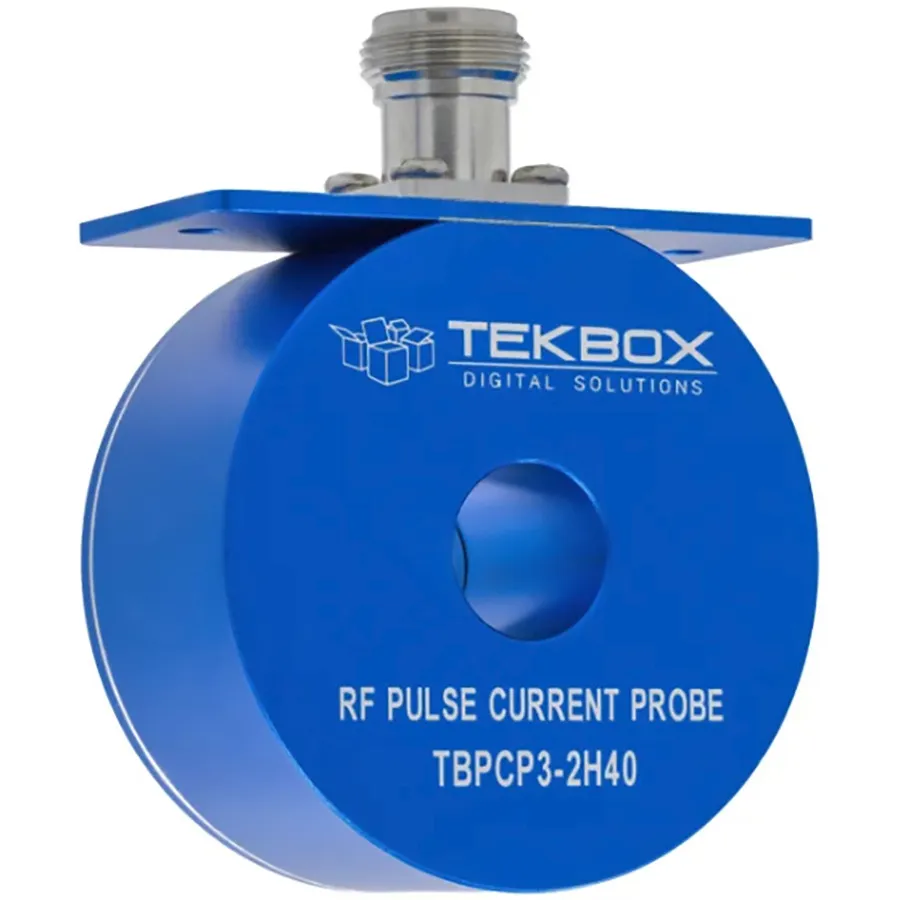

TekBox TBPCP3-2H40 RF Pulse Current Monitoring Probe
Запитати ціну
TekBox TBPCP3-2H40 is an RF pulse current monitoring probe with 2 Hz to 40 MHz bandwidth and 2000A peak current capacity for surge and RF pulse measurements.
Опис
Overview
The TekBox TBPCP3-2H40 is an RF pulse current monitoring probe designed for surge and RF pulse current monitoring in the time domain. It features a characterized frequency range from 0.1 Hz to 100 MHz with a 3 dB bandwidth of 2 Hz to 40 MHz. The probe offers transfer impedance of 0.1 V/A into 50 Ω loads and 0.2 V/A into high-impedance loads, making it suitable for precise current measurements in transient and RF applications.
Key Features
- 3 dB bandwidth: 2 Hz to 40 MHz
- Maximum pulse current: 2000A
- Transfer impedance: 0.1 V/A (50 Ω), 0.2 V/A (high Z)
- Rise time: < 9 ns
- Aperture diameter: 15 mm
- Maximum RMS AC current: 40A
- Droop rate: 0.3% / ms
- N female connector with BNC-female adapter included
Applications
- Surge current monitoring in time domain
- RF pulse current measurement and analysis
- Electronic component transient testing
Характеристики
| Type | Current Probe |
| Frequency | 100 MHz |
| Series | TBPCP3 Series |
