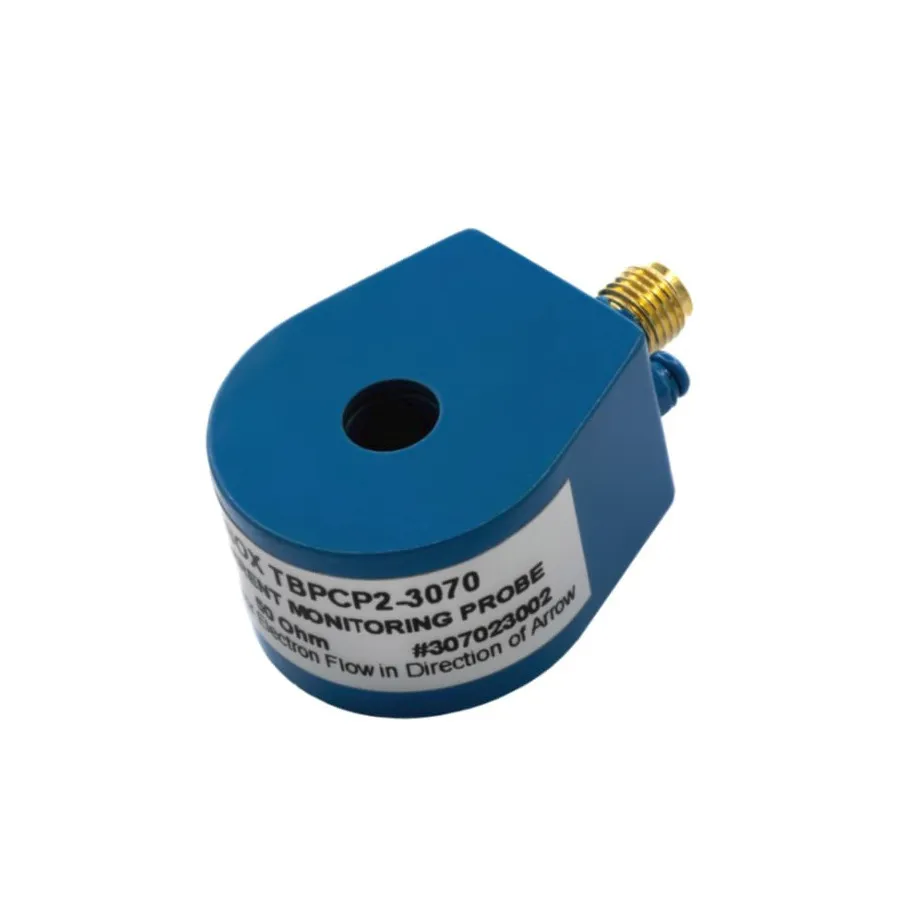

TekBox TBPCP2-3070 RF зонд моніторингу імпульсного струму
TekBox TBPCP2-3070 RF Pulse Current Monitoring Probe
Запитати ціну
TekBox TBPCP2-3070 RF pulse current monitoring probe with 30–70 MHz bandwidth, 0.05 V/A transfer impedance, and 25 mm aperture for time-domain surge and pulse measurements.
Опис
Overview
The TekBox TBPCP2-3070 is an RF pulse current monitoring probe designed for time-domain surge and RF pulse current measurements. With a characterized frequency range from 1 Hz to 200 MHz and a 3 dB bandwidth of 30 Hz to 70 MHz, it provides stable measurement capability across a wide frequency spectrum. The probe features a 25 mm aperture and delivers consistent transfer impedance of 0.05 V/A when terminated with 50 Ohm.
Key Features
- 3 dB bandwidth: 30 Hz to 70 MHz
- Transfer impedance: −26 dB Ohm (0.05 V/A into 50 Ω; 0.1 V/A high-Z)
- Aperture diameter: 25 mm
- Rise time: less than 5 ns
- Maximum RMS AC current: 40 A
- Maximum pulse current: 200 A @ 100 ms, 400 A @ 1 ms pulse width
- Probe port impedance: 50 Ω
- Droop rate: less than 20% per millisecond
Applications
- RF pulse current monitoring and characterization
- Surge current measurement in time domain
- High-speed current transient analysis
- EMI/EMC testing and diagnostics
