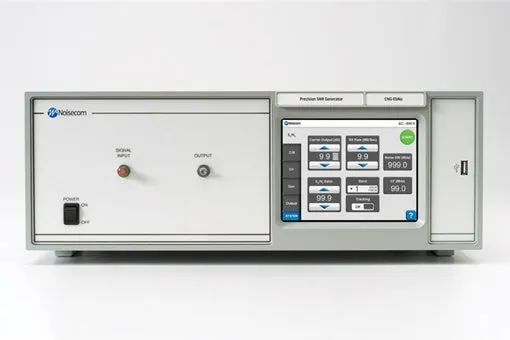

Noise Com CNG-EBNO-IF1 Carrier-to-Noise Generator
Noise Com CNG-EBNO-IF1 генератор шуму на несучій
Запитати ціну
Noise Com CNG-EBNO-IF1 is a precision SNR noise generator covering 50-90 MHz and 100-180 MHz bands with ±0.2 dB RSS accuracy for IF testing applications.
Деталі продукту
| Модель | CNG-EBNO-IF1 |
| Виробник | Noise Com |
| Категорія | RF & Microwave Test Equipment |
| Наявність | На замовлення |
Опис
Огляд
Noise Com CNG-EBNO-IF1 — повністю автоматизований генератор шуму на несучій, який покриває проміжні частоти (IF) 50-90 МГц та 100-180 МГц. Він підтримує високоточні співвідношення несучої до шуму, несучої до завад та енергії сигналу до щільності шуму, що робить його ідеальним для тестування IF каскадів у розвитку військових, супутникових та стільникових приймачів.
Основні характеристики
- Вимірювання та генерування C/N, C/No, Eb/No та C/I співвідношень
- Покриття частот: 50-90 МГц та 100-180 МГц
- Сенсорний екран TFT 6.25 дюйма з одночасним виводом рівнів сигналу
- Точність: ±0.2 дБ RSS (±0.3 дБ гірший випадок)
- Діапазон вихідної потужності: -55 дБм до +5 дБм
- Введення бітової частоти: 1 біт/с до 999 Мбіт/с і більше
- Справжній вимірювач потужності RMS з коефіцієнтом гребеня Гауса до 18 дБ
Застосування
- Тестування IF каскадів у військових та супутникових приймачах
- Розроблення та валідація стільникових та мобільних приймачів
- Характеризація співвідношення сигнал-шум
- Генерування шуму IF смуги загального призначення
Характеристики
| Multiple Operating Modes | The CNG-EbNo provides five operating modes: carrier-to-noise (C/N), carrier-to-noise density (C/N₀ ), bit energy-to-noise density (Eb/N₀ ), carrier-to-interferer (C/I), and power meter. The instrument can also be used as a precision noise generator. |
| Custom Configurations | The CNG-EbNo is available in a variety of configurations to meet your specific testing needs. Applications include: military communications WCDMA SATCOM NASA TDRSS CableTV HDTV IS-95 CDMA TSMA UMTS GPRS L-band modems Milstar Inmarsat Intelsat General Purpose. |
| Direct Display of Eb/No, C/N, C/I, or C/No | The 6.25” color TFT touch screen provides simultaneous readout of all significant input and output signal levels relating to the chosen operating mode, including carrier-to-noise ratios. |
| Accuracy of 0.2 dB RSS | A special, large-dynamic-range power meter measures both the signal and the noise, which allows the CNG-EbNo to set the desired ration to within ±0.2 dB. Special configurations can provide improved accuracy. |
| Bit Rate Entry of 1 bps to 999 Mbps and above | In bit energy-to-noise density testing (Eb/No ), the instrument automatically calculates noise density based on the user specified bit rate. |
| Variable Output Power | Output power is user-specified and can be set within the range of -55 dBm to +5 dBm. |
| True RMS Power Meter | The digital power meter is custom designed to cover the frequency range of the particular instrument. It can measure signals and noise accurately with Gaussian Noise crest factors up to 18 db. |
| Direct Testing at both RF and Microwave Frequencies | In configurations that cover two separate frequency ranges, measurements can be made directly without the need for special conversion circuitry. |
| Feature | Parameter |
| Carrier Path | Input Power Range: -55 dBm to +5 dBm Maximum Input Power: +21 dBm (with no damage) Output Power Range: -55 dBm to +5 dBm |
| Noise Path | Output Power Range: -55 dBm to +5 dBm Ratio Accuracy: ±0.2 dB RSS, ±0.3 dB WCU Power Meter Range: -55 dBm to +5 dBm Power Meter Accuracy: ±0.5 dB |
| Primary Power | Operating Temperature: 0° to 50° C Dimensions: 17” W x 5.25” H x 17.5” D |
| CNG-EbNo-IF1 | 50 to 90 MHz 100 to 180 MHz |
