Tektronix RSA5106A аналізатор спектра реального часу

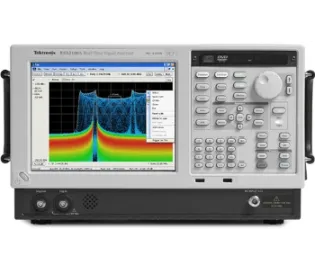

Tektronix RSA5106A Real-Time Spectrum Analyzer
Запитати ціну
Tektronix RSA5106A real-time spectrum analyzer extends to 6.2 GHz with +17 dBm TOI, ±0.5 dB accuracy, and high-speed measurements for communications and radar analysis.
Деталі продукту
| Модель | RSA5106A |
| Виробник | Tektronix |
| Категорія | Аналізатори спектра |
| Наявність | На замовлення |
Опис
Overview
The Tektronix RSA5106A is a real-time spectrum analyzer extending the capabilities of the RSA5000 Series to 6.2 GHz. It provides industry-leading real-time specifications with best minimum signal duration for 100% probability of intercept and real-time dynamic range, combining high-performance spectrum analysis, wideband vector signal analysis, and trigger-capture-analyze functionality in a single instrument.
Key Features
- Frequency range: 1 Hz to 6.2 GHz
- +17 dBm 3rd order intercept at 2 GHz
- ±0.5 dB absolute amplitude accuracy to 3 GHz
- Displayed average noise level: –157 dBm/Hz at 2 GHz
- Phase noise: –109 dBc/Hz at 1 GHz and –134 dBc/Hz at 10 MHz carrier, 10 kHz offset
- High-speed sweeps: 1 GHz sweep at 10 kHz RBW in less than 1 second
- Real-time signal analysis with trigger-capture-analyze capability
Applications
- RF debug and design of components, modules, and systems
- Spectrum management and signal discovery
- Radio and satellite communications analysis
- EMI diagnostics and compliance verification
- Radar and EW analysis of pulsed and complex signals
Характеристики
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | DC <= 1kHz |
