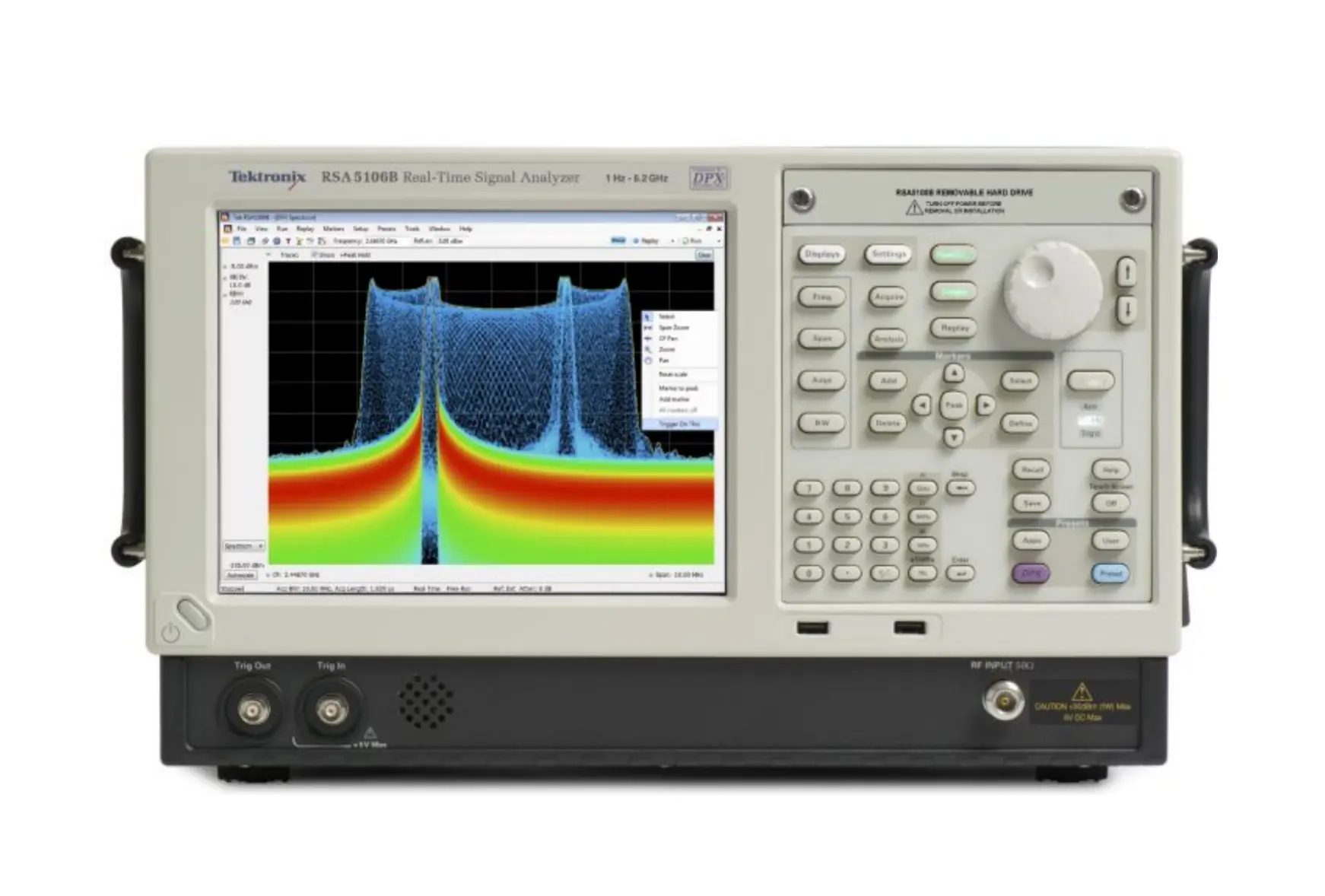

Tektronix RSA5103B аналізатор спектра реального часу

Overview

The Tektronix RSA5103B real-time spectrum analyzer combines outstanding RF performance with comprehensive analysis capabilities for everyday spectrum analysis tasks. With up to 3,125,000 real-time spectrums per second and wideband acquisition up to 165 MHz, it detects signals as brief as 0.434 μs with 100% probability of intercept. The instrument delivers dynamic range of +17 dBm TOI and -157 dBm/Hz DANL at 2 GHz, with full preselection and image-free performance across all acquisition bandwidths.

Key Features

• Frequency range: 1 Hz to 3 GHz
• Real-time acquisition bandwidths: 25 MHz, 40 MHz, 85 MHz, 125 MHz, 165 MHz
• Real-time capture rate: up to 3,125,000 spectrums per second
• Minimum event duration for 100% POI: 0.434 μs
• 3rd order intercept: +17 dBm at 2 GHz
• DANL: -157 dBm/Hz at 2 GHz (typical)
• Spurious-free dynamic range: ≥80 dBc with HD options over full acquisition bandwidth
• Advanced triggers: Power, frequency mask, frequency edge, DPX density, runt, time-qualified
• Signal recording: up to 5+ seconds at 165 MHz bandwidth or 4444 days with spectral recording option
• Standard measurements: Channel power, ACLR, CCDF, OBW, spur search, EMI detection

Applications

• Component and system-level RF design and troubleshooting
• Radar and EW analysis of pulsed and frequency-hopping signals
• Communications signal analysis and modulation characterization
• Spectrum monitoring and signal discovery
• EMC/EMI pre-compliance testing and diagnostic troubleshooting
• Transient and intermittent signal capture and analysis
