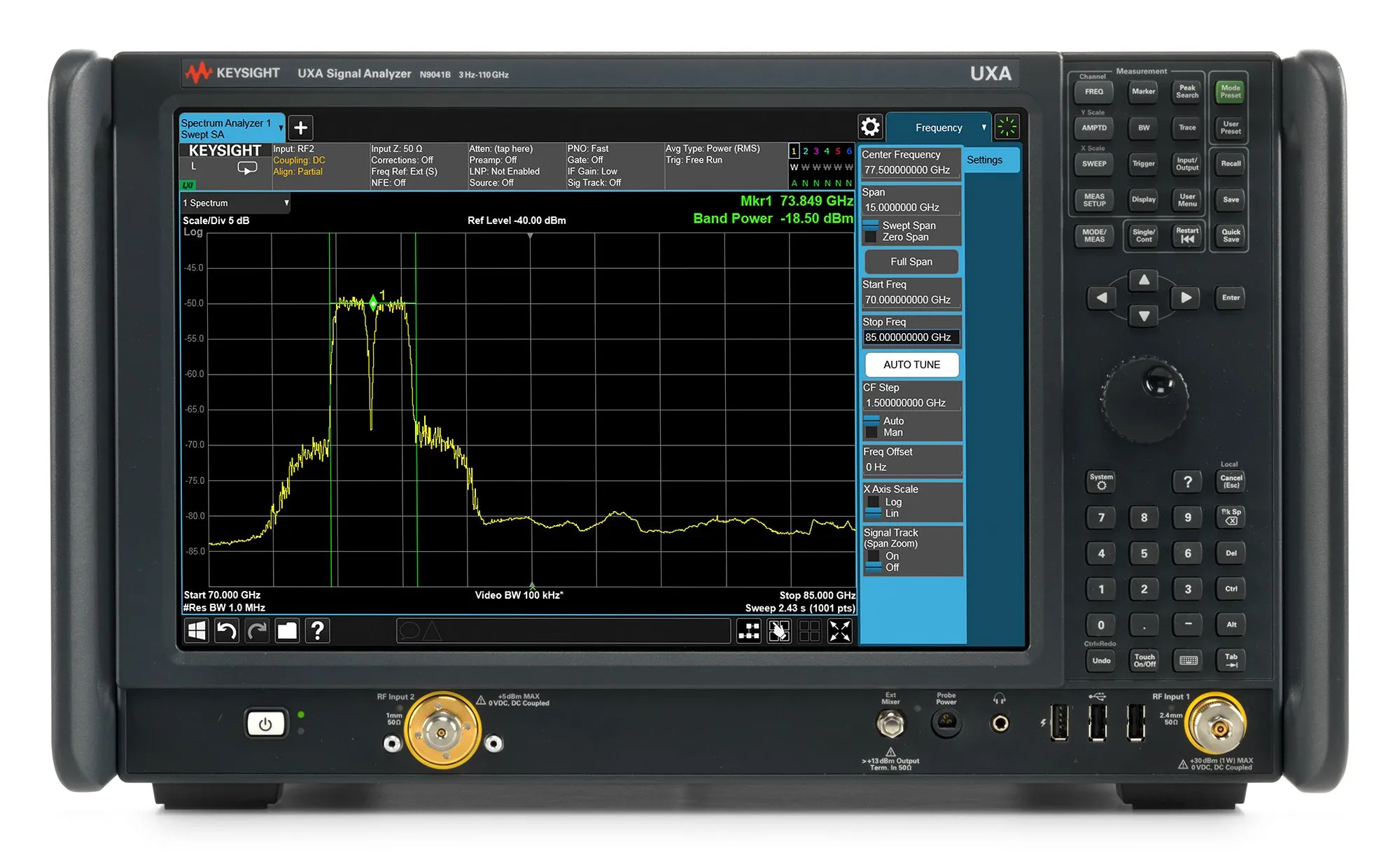

Keysight N9041B аналізатор сигналів

Overview

The Keysight N9041B is an advanced signal analyzer in the X-Series UXA family, providing continuous frequency coverage to 110 GHz with dual input connectors optimized for millimeter-wave measurements. The dedicated 1.0 mm input connector enables continuous sweeps to 110 GHz, while the robust 2.4 mm connector supports measurements up to 50 GHz. It delivers up to 1 GHz analysis bandwidth with gap-free real-time streaming.

Key Features

• Frequency range 2 Hz to 110 GHz with dual input connector design
• 1.0 mm connector for continuous measurements to 110 GHz
• 2.4 mm connector for measurements up to 50 GHz
• Analysis bandwidth up to 1 GHz with multiple configurations
• Real-time streaming up to 255 MHz with gap-free capture
• Phase noise: -147 dBc/Hz at 1 GHz (1 MHz offset)
• DANL: -174 dBm at 1 GHz
• 14.1-inch capacitive multi-touch display

Applications

• 5G and 802.11ax/ay wireless standard characterization
• Millimeter-wave and automotive radar measurements
• Satellite communication signal analysis
• Electronic warfare (EW) signal detection
• Real-world environment recording and analysis
