Keysight E4362A/J18 модуль симулятора сонячного масиву

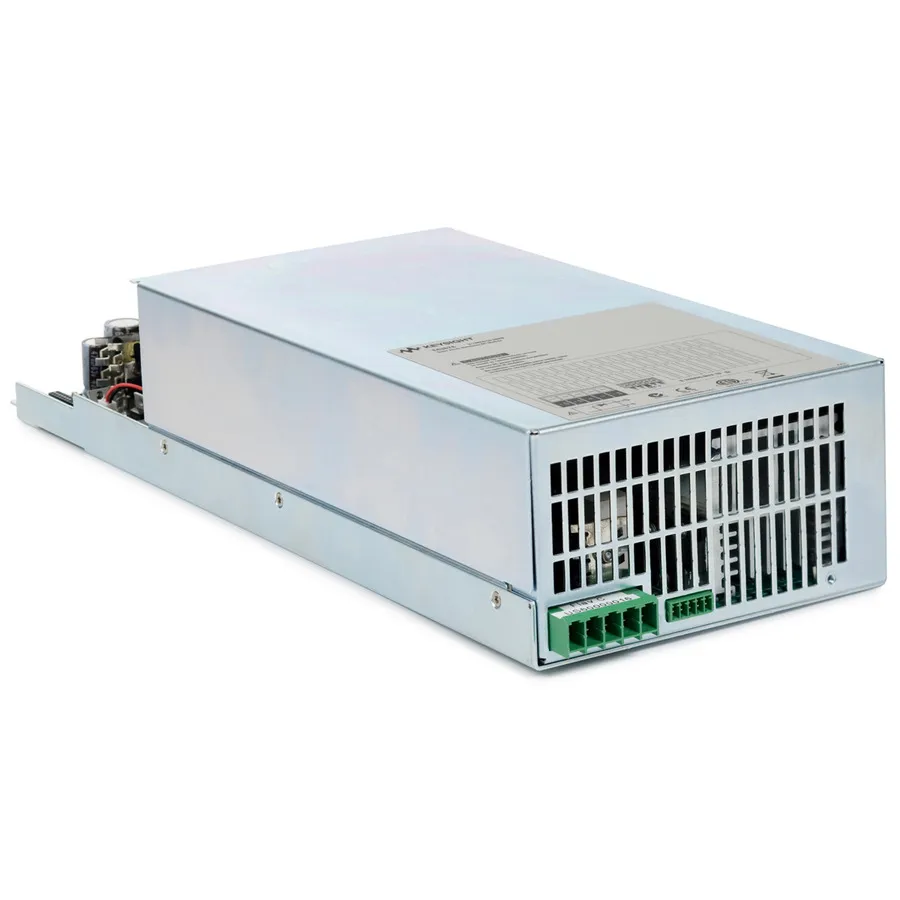

Keysight E4362A/J18 Solar Array Simulator Module
Запитати ціну
Keysight E4362A/J18 is a 150V, 4A, 600W solar array simulator module with low output capacitance and fast I-V curve response.
Деталі продукту
| Модель | E4362A/J18 |
| Виробник | Keysight |
| Категорія | Симулятори сонячних батарей |
| Наявність | На замовлення |
Опис
Overview
The Keysight E4362A/J18 is a solar array simulator (SAS) DC power module that replicates the output behavior of solar arrays with low acoustic noise characteristics. Configured for 150V maximum open-circuit voltage, 4A maximum short-circuit current, and 600W maximum power, this low-capacitance current source enables rapid I-V curve changes to accurately simulate diverse solar arrays under various environmental conditions including temperature variations, aging, eclipse scenarios, and spin dynamics.
Key Features
- 150V Voc Max, 4A Isc Max, 600W power output
- Low output capacitance for fast I-V curve response
- Low acoustic noise operation
- Dual operation modes: Simulator/Table Mode and Fixed Mode
- Low ripple and noise: 26 mV rms, 217 mV p-p in Simulator mode
- Voltage and current measurement capability
- Hardware trigger for rapid multi-output measurements
- Data logging at 10 readings per second
- Over-voltage, over-current, and over-temperature protection
Applications
- Solar power system testing and development
- Photovoltaic array characterization
- Space power supply and satellite testing
- Environmental condition simulation
Included Accessories
- E4362A/J18 Low Acoustic Noise SAS Module
Характеристики
| Power Rating | 600 W |
| Output Voltage | 150 V |
| Output Current | 4 A |
| Type | Module |
| Series | E4360 Series |
| Programmable | Yes |
