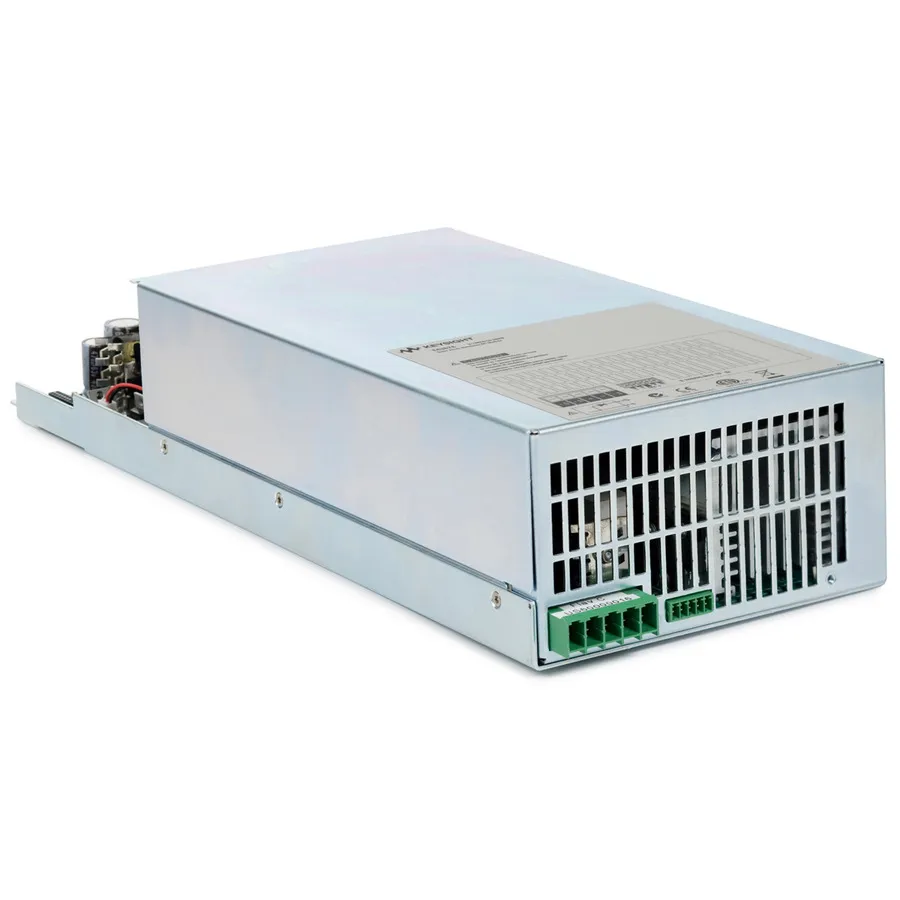

Keysight E4362A/J10 модуль симулятора сонячного масиву

Overview

The Keysight E4362A/J10 is a low acoustic noise solar array simulator (SAS) DC power module designed for quiet operation in sensitive test environments. Configured for 130V maximum open-circuit voltage, 5A maximum short-circuit current, and 600W maximum power, this low-capacitance current source enables fast I-V curve changes to simulate diverse solar arrays under various environmental conditions including temperature variations, aging, eclipse scenarios, and spin dynamics.

Key Features

• 130V Voc Max, 5A Isc Max, 600W power output
• Low acoustic noise operation for sensitive environments
• Low output capacitance for fast I-V curve response
• Dual operation modes: Simulator/Table Mode and Fixed Mode
• Low ripple and noise: 28 mV rms, 249 mV p-p in Simulator mode
• Voltage and current measurement capability
• Hardware trigger for rapid multi-output measurements
• Data logging at 10 readings per second
• Over-voltage, over-current, and over-temperature protection

Applications

• Solar power system testing and development
• Photovoltaic array characterization
• Space power supply and satellite testing
• Quiet laboratory environments

Included Accessories

• E4362A/J10 Low Acoustic Noise SAS Module
