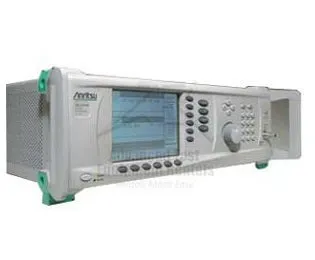

Anritsu MG3692C генератор RF сигналів

Overview

The Anritsu MG3692C is a broadband signal generator spanning 0.1 Hz to 70 GHz with optional extension to 500 GHz and beyond using external multipliers. The MG3692C offers three selectable tiers of SSB phase noise performance to optimize cost versus performance requirements. Featuring industry-best pulse modulation capabilities with 100 ns leveled pulse widths, fast 5 ms frequency switching, and a full suite of analog modulation options, the MG3692C is highly configurable for both simple and complex signal simulation requirements.

Key Features

• Broad frequency coverage from 0.1 Hz to 70 GHz extendable to 500 GHz with external multipliers
• Three tiers of SSB phase noise performance: Standard, Ultra Low (Option 3), and Premium (Option 3X)
• Industry-best pulse modulation with 100 ns leveled pulse widths and 10 ns resolution
• Quad pulse generation capability for comprehensive radar simulation (single, doublet, triplet, quadruplet pulses)
• Fast frequency switching at 5 ms typical with optional analog sweep capability
• Full analog modulation: AM, FM, Phase, and Pulse with internal and external options
• High output power eliminating need for external amplification
• Flexible frequency extension options: Option 4 (8 MHz–2.2 GHz), Option 5 (8 MHz–2 GHz), Option 22 (0.1 Hz–10 MHz)

Applications

• Narrow pulse radar emulation and testing with comprehensive target simulation
• LO substitution for frequency conversion testing
• High-resolution clock source for ADC/DAC characterization
• Analog signal simulation with complex modulation waveforms
• Component and system testing requiring fast frequency switching
• Metrology and calibration laboratory applications
