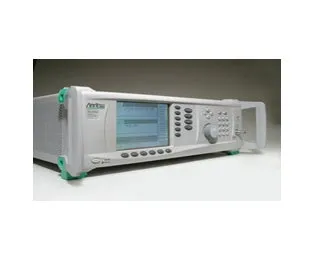

Anritsu MG3692B генератор RF сигналів

Overview

The Anritsu MG3692B is a broadband signal generator covering 0.1 Hz to 70 GHz with coverage extendable to 325 GHz and beyond using external multipliers. Combining high output power with excellent spectral purity and fast frequency switching, the MG3692B serves as an ideal signal source for RF and microwave testing applications. The instrument offers the highest output power and best-in-class spectral purity in its class, eliminating the need for external amplification in most applications.

Key Features

• Broad frequency coverage from 0.1 Hz to 70 GHz with option for millimeter-wave extension via external multipliers
• Guaranteed +23 dBm output power at 20 GHz with typical -94 dBc/Hz phase noise at 1 kHz offset
• Fast frequency switching at 5 ms per point with optional analog ramp sweep for even faster measurements
• Full modulation suite: AM, FM, PM, and pulse modulation with simultaneous options
• High output power eliminates need for external amplification
• Quad pulse signal generation and pulse sweep capabilities for radar simulation
• Full backward compatibility with MG3690A and previous 68C/69B series

Applications

• High-power local oscillator for frequency up-conversion and down-conversion testing
• Pulsed radar signal simulation with moving target and multiple target capabilities
• ADC/DAC testing with high-power clock source
• Component testing including amplifiers, mixers, and nonlinear devices
• ATE systems requiring reduced test time through fast frequency switching
