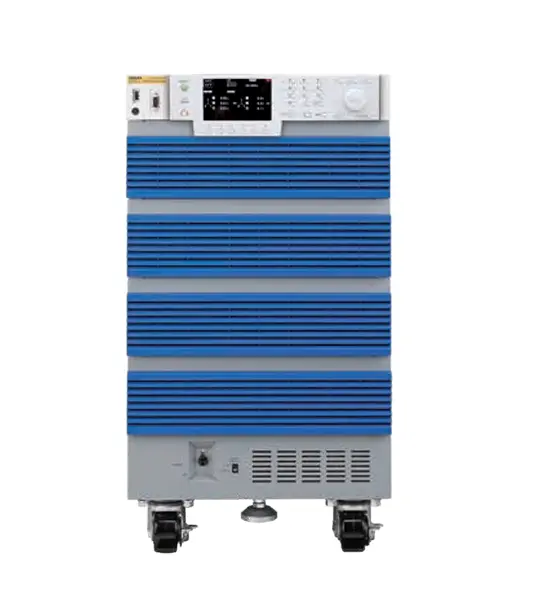

Kikusui PCR18000WEA2R Regenerative AC Power Supply
Kikusui PCR18000WEA2R регенеративне джерело змінного струму
Запитати ціну
Kikusui PCR18000WEA2R is an 18 kVA AC power supply with 100% regenerative capability, 0–320 V output, 0.25 Vrms ripple, 85% efficiency, and 5 kHz frequency.
Деталі продукту
| Модель | PCR18000WEA2R |
| Виробник | Kikusui |
| Категорія | Power Supplies & Electronic Loads |
| Наявність | На замовлення |
Опис
Огляд
Kikusui PCR18000WEA2R — це програмоване джерело змінного струму 18 кВА типу ШІМ-інвертор з 100% регенеративною здатністю, яка дозволяє повне відновлення потужності та значне зниження витрат на експлуатацію. З компактним дизайном та передовими функціями, він ідеально підходить для складних сценаріїв тестування в аерокосмічній, оборонній та промисловій галузях.
Основні характеристики
- 18 кВА однофазний або трифазний змінний вихід
- Вихід AC 0–320 Vrms, вихід DC 0–±452 В
- 100% регенеративна здатність (тільки трифазні моделі входу 200 В, тільки на території)
- Необмежений час зворотного потоку навантаження для відновлення енергії
- Частота виходу до 5 кГц для критичних аерокосмічних та оборонних застосувань
- Надзвичайно низька пульсація: 0,25 Vrms
- Висока ефективність: близько 85%
- Паралельна робота до 144 кВА з довільним змішуванням моделей
- Вихід DC 100% від номінальної потужності
- Передові цифрові інтерфейси: LAN (LXI), USB, RS232C, GPIB (опція)
Застосування
- Регенеративне тестування аерокосмічного обладнання
- Моделювання та валідація передових оборонних систем
- Тестування високопотужних промислових приводів та моторів
- Сценарії тестування з відновленням енергії та оптимізацією витрат
- Автоматизовані системи високопотужного тестування в стійках
Характеристики
| Compact Size | Compared to our previous PWM models, the size of the PCR-WEA has been drastically reduced by 60%. Efficiency has also been increased by approximately 7%, for an overall high efficiency of approximately 85%. |
| Up to 144kVA with Parallel Operation | Parallel operation is available on all models by simply connecting an optional parallel operation cable. This feature is available even among different models for a wide range of high power. *Same input voltage required for 6 kVA models and higher. |
| Extremely Power Dense 36kVA Chassis | The PCR-WEA/WEA2 form factor has been significantly improved, occupying the absolute minimum amount of precious space in your testing facility. The form factor is even further optimized in high power models. |
| Low Ripple Noise | Achieves an extremely low switching noise for a PWM inverter-type AC power supply, with ripple noise as low as 0.25 Vrms. The PCR-WEA series even boasts similar noise performance with the PCR-LE/LE2 linear amplifier power supply series. The compact, high-power design of the PCR-WEA/WEA2 has been achieved with absolutely no compromises to ripple noise performance. |
| 100% Regeneration Capability, No Time Limit | The PCR-WEA2R models are capable of 100% power regeneration. The power regeneration feature is available with absolutely no reverse load flow time limit. (30% for PCR-LE/LE2) *Regeneration is limited within installation site. Only available in "R" models (PCR-WEA2R) with 3-phase 200 V input. |
| Output Frequency | It has a maximum output frequency up to 5 kHz for critical applications in the defense and avionics industries. The frequency performance of the PCR-WEA allows for simulation of sharp voltage fluctuations required for airborne electronic equipment testing. Furthermore, the compact 6kVA/6U form factor allows for the easy preparation of an automated, one-rack testing system without requiring a costly, specialized power source installation space. |
| DC Output 100% of Rated Power | The PCR-WEA/WEA2 series enables DC output up to 100% of the AC rated power output. |
| LAN, USB, RS232C Standard Digital Interface | The PCR-WEA/WEA2 series includes a flexible digital interface for users utilizing LAN, USB, and RS232C communication interfaces (GPIB factory option available). LAN connection is LXI compliant, allowing you to monitor and control your device wherever you are via computer, smartphone, or tablet web browser. This feature is particularly important when conducting critical AC tests in anechoic chambers/shield rooms. Additionally, the PCR-WEA can be controlled directly with easy remote-control software for customers with limitations in external communication. |
| Power Saving Mode | Sleep Mode: If the PCR-WEA/WEA2 does not detect output for a certain amount of time, the power unit will go into "sleep mode" and cut power consumption. Power-Saving Mode: The power-saving feature allows the PCR-WEA to cut the costs of operation by drawing power from only the necessary power modules required to reach the output setting. |
| Safety ¹ | Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷) Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷) Complies with the requirements of the following directive and standards: Low Voltage Directive 2014/35/EU ² EN 61010-1 (Class I ⁶, Pollution Degree2 ⁷) |
| Operating Environment | Indoor use Overvoltage category II Indoor use Overvoltage category II Indoor use Overvoltage category II |
| Operating Temperature | 0 °C to +50 °C 32 °F to +122 °F 0 °C to +50 °C 32 °F to +122 °F 0 °C to +50 °C 32 °F to +122 °F |
| Storage Temperature | -10 °C to +60 °C 14 °F to +140 °F -10 °C to +60 °C 14 °F to +140 °F -10 °C to +60 °C 14 °F to +140 °F |
| Operating Humidity | 20 %rh to 80 %rh (no condensation) 20 %rh to 80 %rh (no condensation) 20 %rh to 80 %rh (no condensation) |
| Storage Humidity | 90 %rh and less (no condensation) 90 %rh and less (no condensation) 90 %rh and less (no condensation) |
| Altitude | Up to 2000 mUp to 2000 mUp to 2000 m |
| Input Terminal | M5M5200 V input model : M8 400 V input model : M5 |
| Output Terminal | M5M5M6 |
| Operating Temperature | 0 °C to +50 °C 32 °F to +122 °F) 0 °C to +50 °C 32 °F to +122 °F 0 °C to +50 °C 32 °F to +122 °F |
| Input Terminal | M6M6M6 |
| Output Terminal | M6M6M6 |
| Input Terminal | 200 V input model : M8 400 V input model : M5200 V input model : M8 400 V input model : M5200 V input model : M8 400 V input model : M5 |
| Output Terminal | M6M8M8 |
