Pacific Power 120ASX програмоване джерело змінного струму

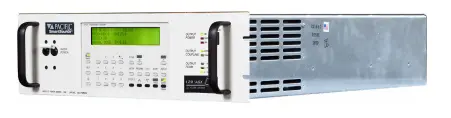

Pacific Power 120ASX Programmable AC Power Source
Pacific Power 120ASX is a 2 kVA single-phase programmable AC power source with 150/300 VAC output, 15-1200 Hz operation, and 22-waveform arbitrary function generator.
Деталі продукту
| Модель | 120ASX |
| Виробник | Pacific Power |
| Категорія | Блоки живлення та електронні навантаження |
| Наявність | На замовлення |
Опис
Overview
The Pacific Power 120ASX is a single-phase programmable AC power source offering advanced capabilities for power conversion, frequency variation, and sophisticated transient simulation. With 2 kVA of output power and switchable voltage levels of 150 or 300 VAC, it delivers a flexible solution for applications ranging from simple frequency conversion to complex AC power line disturbance testing. The 22-waveform library and arbitrary waveform generator provide flexibility for custom test scenarios, while precision voltage regulation of 0.05% and fast 60-microsecond response time support demanding test requirements.
Key Features
- Output power: 2 kVA single-phase with selectable 150/300 VAC output
- Frequency range: 15 to 1,200 Hz with 5,000 Hz bandwidth
- 22-waveform library and arbitrary waveform generator for custom test profiles
- Precision voltage programming: 0.05% accuracy with Continuous Self-Calibration (CSC) engaged
- Load regulation: 0.25% (15-400 Hz) and 0.50% (400-1,200 Hz); improves to <0.1% with external sense and CSC
- Low output distortion: 0.25% THD (15-200 Hz), 0.50% THD (200-1,200 Hz)
- Fast transient response: 60 microseconds typical for 10-90% load step
- Waveform creation by harmonic synthesis and harmonic analysis capabilities
- 99 stored programs for static and dynamic transient testing scenarios
- Precision True-RMS metering for volts, amps, and power display and reporting
- RS-232 interface with standard SCPI control and optional USB connectivity
- Front panel or bus command selectable 1-phase/3-phase output switching
- Optional multi-point thermocouple scanner cards with 10 or 20 channels
- LabVIEW and LabWindows drivers for automated testing integration
- Programmable output impedance and external sense capabilities
Applications
- Power supply testing and validation across multiple operating conditions
- AC line conditioning and frequency conversion for equipment testing
- Harmonic injection and power quality simulation for standards compliance
- Transient testing and disturbance simulation for equipment robustness evaluation
- Compliance testing and certification support for power equipment manufacturers
- Equipment design validation and troubleshooting in development environments
Характеристики
| Maximum Voltage | 300V |
| Maximum Current | 20A |
| Maximum Power | 2000W |
| Channel/Port Count | 1 |
| Phases | 1 |
