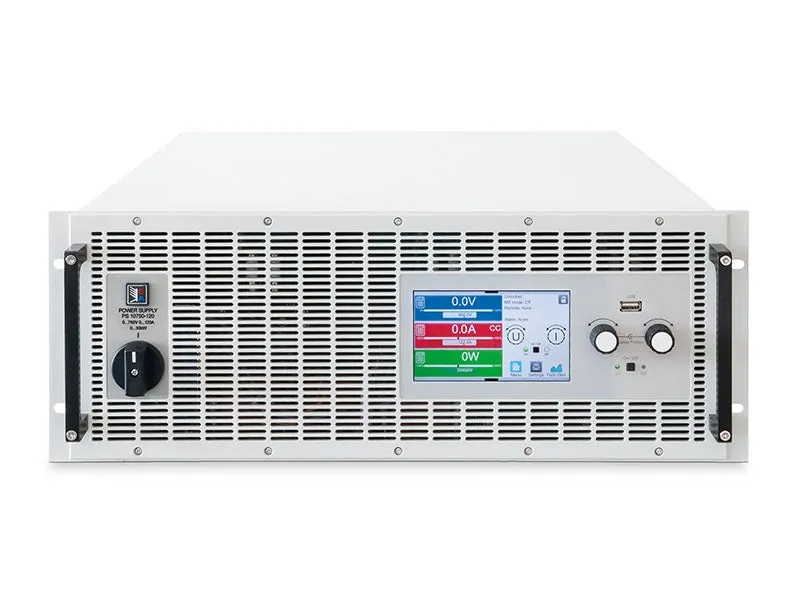

Elektro-Automatik EA-PSBE 10080-1000 4U Bidirectional DC Power Supply
Elektro-Automatik EA-PSBE 10080-1000 4U двонаправлене джерело живлення
Запитати ціну
Elektro-Automatik EA-PSBE 10080-1000 is a 30 kW 4U bidirectional DC power supply with 0-80V/0-1000A output, 94.6% energy recovery, and comprehensive connectivity options.
Деталі продукту
| Модель | EA-PSBE 10080-1000 4U |
| Виробник | Elektro-Automatik |
| Категорія | Power Supplies & Electronic Loads |
| Наявність | На замовлення |
Опис
Огляд
Elektro-Automatik EA-PSBE 10080-1000 — двонаправлене лабораторне джерело постійного струму з номінальною потужністю 30 кВт у форм-факторі 4U. Він забезпечує вихідну напругу 0-80В та струм до 0-1000А. Як економічний варіант серії PSB 10000, поєднує функціональність джерела живлення та електронного навантаження з регенерацією енергії до 94,6% ефективності, зберігаючи повне підключення та контрольні інтерфейси за нижчою ціною.
Основні характеристики
- Широкий діапазон AC живлення: 342В-528В (мережі 380В, 400В або 480В)
- Доступні моделі для США 208В
- Двонаправлена робота: джерело живлення та електронне навантаження в одному пристрої
- Ефективність енергорегенерації: до 94,6%
- Номінальна потужність: 30 кВт на пристрій, розширюється до 1920 кВт при паралельній роботі
- Діапазон напруги: 0-80В
- Діапазон струму: 0-1000А
- Гнучке регулювання потужності з автоматичним діапазоном
- Комплексні схеми захисту: OVP, OCP, OPP, OTP
- 5-дюймовий кольоровий TFT сенсорний екран
- Дистанційне зондування з автоматичним визначенням
- Гальванічно ізольовані інтерфейси: USB, Ethernet, аналоговий, слот розширення
- Опціональні модулі цифрових інтерфейсів (CAN, RS232, Profibus тощо)
- Мови команд SCPI та ModBus
- LabVIEW VIs та програмне забезпечення для Windows
Застосування
- Тестування та характеризація батарей для автомобілів та накопичення енергії
- Розвиток та валідація силової електроніки
- Тестування електричних систем автомобілів
- Тестування промислового обладнання та компонентів
- Дослідницькі та лабораторні застосування
- Енергорегенерація та симуляція навантаження
Характеристики
| AC Supply | All models are provided with an active Power Factor Correction (PFC) circuit and are designed for operation on a three-phase supply with typical worldwide ratings between 380 V and 480 V AC. But also regions where only 208 V three-phase is available are covered by the US 208 V models. During load operation, the device recovers the consumed DC energy and feeds it back into the local power network. This helps saving a lot of energy costs. |
| Autoranging Power Stage | All models are equipped with a flexible autoranging bidirectional power stage which provides a higher output voltage at lower output current or a higher output current at lower output voltage, always limited to the max. rated output power. The same applies for sink mode operation. The power set value is adjustable with these models. Therefore, a wide range of applications can already be covered by the use of just one unit. |
| DC Output/Input | DC voltages between 0...60 V and 0 ...2000 V, current ratings between 0...40 A and 0...1000 A are available, all along with a power rating of 0...30kW for all standard models, while the US 208 V models are rated with 0...15 kW. The DC terminal is located on the rear panel. |
| Source-Sink Operation | One salient feature of these devices is the coalescence of an electronic load, also called sink, and a power supply, also called source, into one unit. It means, the device cannot only arbitrarily operate as sink or source, the switchover between these two operating modes occurs without interruption and time loss. This is also called two-quadrants operation. |
| Energy Recovery | The most important feature of these devices is that the AC input while connected to the grid is also used as output for the recovery of the supplied DC energy during load operation, which is converted with an efficiency of up to 95.5%. This way of energy recovery helps to lower costs and can avoid expensive cooling systems, such as they are required for conventional electronic loads which only convert energy into heat. |
| Master-Slave | All models feature a digital master-slave bus by default. It can be used to connect up to 64 units of identical models in parallel operation to a bigger system with totals formation of the actual value of voltage, current and power. This allows for a total power of up to 1920 kilowatts. The configuration of the master-slave system is either completely done on the control panels of the units or by remote control via any of digital communication interfaces. Handling of the master unit is possibly by manual or remote control (any interface). |
| Display and Control Panel | Set values and actual values of input & output voltage / current / power are clearly represented on the 5" graphic display. The color TFT screen is touch sensitive and can be intuitively used to control all functions of the device with just a finger tip. Set values of voltage, current, power or resistance can be adjusted using the rotary knobs or entered directly via a numeric pad. To prevent unintentional operations, all operation controls can be locked. |
| Analog Interface | There is a galvanically isolated analog interface terminal, located on the rear of the device. It offers analog inputs to set voltage, current, power and resistance from 0...100% through control voltages of 0 V...10 V or 0 V...5 V. To monitor the output voltage and current, there are analog outputs with 0 V...10 V or 0 V...5 V. Also, several inputs and outputs are available for controlling and monitoring the device status. |
| Feature | Description |
| Product Type | DC Laboratory Power Supply |
| Rated Voltage and Range | 0...80 V |
| Insulation | Negative DC < - > PE: ±1500 V DC Positive DC < - > PE: +2000 V DC |
| Rated Current and Range | 0...240 A |
| Rated Power | 0...30 kW (0...15 kW) 4 |
| PSBE 10080-1000 4U | Rated Voltage and Range: 0...80 V Rated Current and Range: 0...1000 A Rated Power: 0...30 kW (0...15 kW) * |
