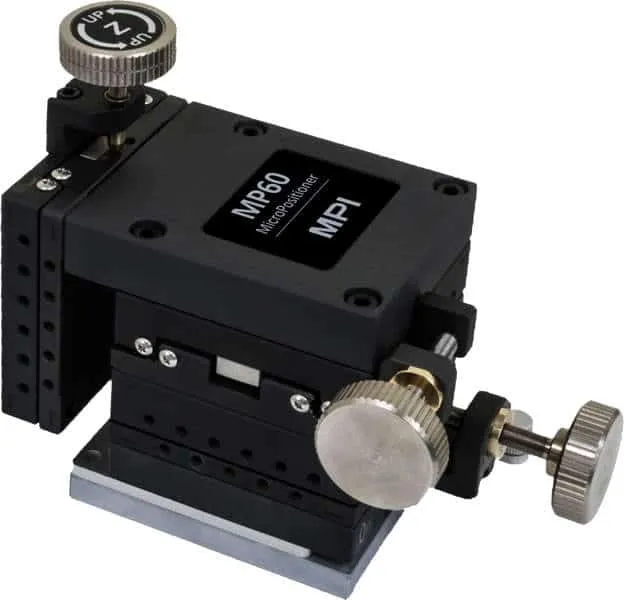

MPI MP60R RF Micropositioner
MPI MP60R RF мікропозиціонер
Запитати ціну
MPI MP60R is a right-hand RF micropositioner with sub-2 µm feature resolution, 20×20×13 mm travel range, magnetic mounting, and 60 mm base stage for accurate RF and broadband measurements.
Деталі продукту
| Модель | MP60R |
| Виробник | MPI |
| Категорія | LCR & Impedance Analyzers |
| Наявність | На замовлення |
Опис
MPI MP60R — правобічний RF мікропозиціонер з роздільною здатністю < 2 µm, діапазоном 20×20×13 мм, магнітним кріпленням та 60 мм базовою платою.
Характеристики
| Feature Resolution | < 2 µm< 2 µm< 1 µm< 2 µm |
| Mounting | MagneticMagneticMagneticBolt-down |
| Base Stage Size | 60 mm60 mm60 mm60 mm |
| Footprint | 89 x 60 mm89 x 60 mm89 x 60 mm160 x 149 mm |
| Versions | Right and LeftRight and LeftRight and LeftUp to four E / W / N / S, Depends on system and arm configuration |
| Application | Accurate and stable RF measurementsAccurate and stable RF measurementsAccurate and stable RF measurementsAccurate and stable RF measurements |
| Feature Resolution | < 4 µm< 3 µm< 2 µm |
| Mounting | MagneticMagneticMagnetic |
| Base Stage Size | 25 mm40 mm50 mm |
| Footprint | 55 mm x 40 mm65 x 40 mm86 x 60 mm |
| Versions | Right or LeftUnidirectionalRight and Left |
| Application | IV/CV coaxial Ultra-low current triaxial measurements Accurate IV/CV coaxial Ultra-low current triaxial and RF measurements Extreme accurate IV/CV coaxial Ultra-low current triaxial measurements Internal node probing |
| Feature Resolution | < 2 µm< 2 µm< 2 µm |
| Mounting | Bolt-downBolt-downBolt-down |
| Base Stage Size | 80 mm80 mm80 mm |
| Footprint | 100 x 80 mm216 x 193 mm100 x 80 mm |
| Versions | Right and LeftE/W or R/L Depends on system and arm confi- guration Right and Left |
| Application | Accurate and stable RF measurements Broadband and mmW measurements Accurate and stable broadband and mmW measurementsAccurate and stable RF, broadband and mmW measurements. Ideal for multi-line TRL calibration |
| Feature Resolution | < 2 µm< 2 µm |
| Mounting | Bolt-downBolt-down |
| Mounting Platform | 505 x 300 mm, M6 screw holes in 25 mm pitch 480 x 300 mm M6 screw holes in 25 mm pitch |
| Versions | Right and LeftRight and Left |
| Application | Accurate noise figure and load pull measurementsVector load pull with tuners and direct mounted RF probes |
