MPI MP60L RF мікропозиціонер
MPI MP60L RF Micropositioner
MPI MP60L is a left-hand RF micropositioner with sub-2 µm feature resolution, 20×20×13 mm travel range, magnetic mounting, and 60 mm base stage for accurate RF and broadband measurements.
Деталі продукту
| Модель | MP60L |
| Виробник | MPI |
| Категорія | LCR-метри та аналізатори імпедансу |
| Наявність | На замовлення |
Опис
Overview

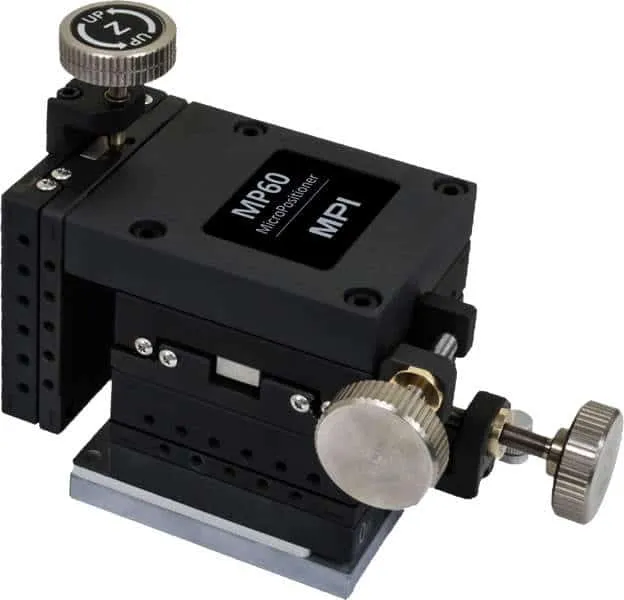

The MPI MP60L is a precision RF micropositioner designed for accurate and stable RF measurements in test and measurement applications. Built with full carbon-steel construction, it delivers superior positioning accuracy and stable contact over extended periods, making it ideal for RF probe placement on semiconductor devices and test wafers.
The MP60L is the left-hand variant of MPI's RF positioner series, featuring backlash-free operation and universal interface compatibility with all probe arms. Unified Z-direction control and ergonomic manual operation with a strong magnetic base enable fine probe placement for high contact quality and unsurpassed measurement results.
Key Features
- Feature resolution better than 2 µm for precise probe positioning
- Travel range of 20 mm (X/Y) and 13 mm (Z) for comprehensive positioning flexibility
- Screw resolution of 250 or 500 µm (X/Y) and 300 µm (Z) depending on configuration
- Magnetic base for quick mounting and secure placement on test stages
- 60 mm base stage size with 89×60 mm footprint
- Left-hand configuration for optimal operator ergonomics
- Backlash-free carbon-steel construction for repeatable accuracy
- Universal interface compatible with all probe arms
Applications
- RF and broadband device measurements
- On-wafer RF probe testing
- Precision positioning in RF measurement systems
- Semiconductor characterization and parametric testing
- High-frequency device validation
Характеристики
| Feature Resolution | < 2 µm< 2 µm< 1 µm< 2 µm |
| Mounting | MagneticMagneticMagneticBolt-down |
| Base Stage Size | 60 mm60 mm60 mm60 mm |
| Footprint | 89 x 60 mm89 x 60 mm89 x 60 mm160 x 149 mm |
| Versions | Right and LeftRight and LeftRight and LeftUp to four E / W / N / S, Depends on system and arm configuration |
| Application | Accurate and stable RF measurementsAccurate and stable RF measurementsAccurate and stable RF measurementsAccurate and stable RF measurements |
| Feature Resolution | < 4 µm< 3 µm< 2 µm |
| Mounting | MagneticMagneticMagnetic |
| Base Stage Size | 25 mm40 mm50 mm |
| Footprint | 55 mm x 40 mm65 x 40 mm86 x 60 mm |
| Versions | Right or LeftUnidirectionalRight and Left |
| Application | IV/CV coaxial Ultra-low current triaxial measurements Accurate IV/CV coaxial Ultra-low current triaxial and RF measurements Extreme accurate IV/CV coaxial Ultra-low current triaxial measurements Internal node probing |
| Feature Resolution | < 2 µm< 2 µm< 2 µm |
| Mounting | Bolt-downBolt-downBolt-down |
| Base Stage Size | 80 mm80 mm80 mm |
| Footprint | 100 x 80 mm216 x 193 mm100 x 80 mm |
| Versions | Right and LeftE/W or R/L Depends on system and arm confi- guration Right and Left |
| Application | Accurate and stable RF measurements Broadband and mmW measurements Accurate and stable broadband and mmW measurementsAccurate and stable RF, broadband and mmW measurements. Ideal for multi-line TRL calibration |
| Feature Resolution | < 2 µm< 2 µm |
| Mounting | Bolt-downBolt-down |
| Mounting Platform | 505 x 300 mm, M6 screw holes in 25 mm pitch 480 x 300 mm M6 screw holes in 25 mm pitch |
| Versions | Right and LeftRight and Left |
| Application | Accurate noise figure and load pull measurementsVector load pull with tuners and direct mounted RF probes |
