Fluke Networks MFTK-MM850-SM1550 MultiFiber Pro Kit
Fluke Networks MFTK-MM850-SM1550 MultiFiber Pro набір
Запитати ціну
Fluke Networks MFTK-MM850-SM1550 MultiFiber Pro Kit enables rapid MPO fiber trunk testing for multimode and 1550 nm singlemode networks without fan-out cords.
Деталі продукту
| Модель | MFTK-MM850-SM1550 |
| Виробник | Fluke Networks |
| Категорія | Fiber Optic Test |
| Наявність | На замовлення |
Опис
Огляд
Fluke Networks MFTK-MM850-SM1550 MultiFiber Pro — це спеціалізоване рішення для тестування волоконної оптики для програм дата-центрів та дальньої телекомунікаційної передачі. Він дозволяє сертіфіковане тестування 850 nm мультимодових та 1550 nm одномодових волоконних стовбурів MPO у одному наборі, скорочуючи типовий час сертифікації з тижнів до днів.
Основні характеристики
- Тестування з подвійною довжиною хвилі: 850 nm мультимодові та 1550 nm одномодові стовбури MPO
- Функція Scan All автоматично тестує всі 12 волокон за 6 секунд
- Вбудований MPO-з'єднувач усуває необхідність розподільних кабелів
- Автоматичне виявлення та аналіз зв'язків 8, 10 та 12 волокон
- Вбудована верифікація полярності (методи A, B та C)
- Encircled Flux відповідність на входовому розділі
- Запатентований інтерфейс користувача для одночасного відображення результатів для 12 волокон
- Можливості розв'язування проблем на рівні окремих волокон
- Зберігання 3000 результатів тестування з програмним забезпеченням звітів LinkWare 7
- Самозакривний захисний кришка MPO-з'єднувача
Застосування
- Сертифікація та верифікація волоконних стовбурів дата-центрів
- Монтаж та обслуговування дальніх одномодових мереж
- Верифікація полярності MPO-з'єднувачів
- Розгортання інфраструктури Ethernet 40/100 Gbps
- Польові роботи з усунення несправностей та діагностика окремих волокон

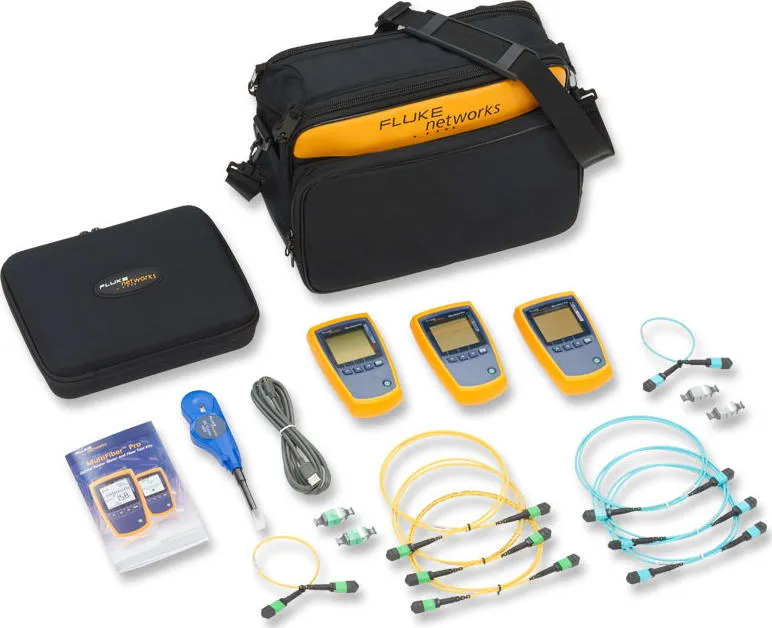

Комплектація
- Оптичний вимірювач потужності MultiFiber Pro з інтерфейсом MPO
- Джерело світла 850 nm
- Джерело світла 1550 nm
- Контрольні кабелі
- Адаптери MPO
- Магнітні кріплення-ремені
- Транспортна сумка
Характеристики
| Scan All Function | The Scan All function in the MultiFiber Pro Power Meter automatically scans and tests all 12 fibers in MPO connectors – taking just 6 seconds to complete all loss or power measurements. This feature automates the certification of MPO terminated fibers and eliminates the time consuming and manual process of moving the fiber tester from fiber to fiber while using fan-out cords. |
| Built-in Polarity Verification | The simple purpose of any polarity scheme is to provide a continuous connection from the link’s transmitter to the link’s receiver. For array connectors, TIA-568-C.0 defines three methods to accomplish this: Methods A, B and C. Deployment mistakes are common because these methods require a combination of patch cords with different polarity types. The polarity measurement of MultiFiber Pro allows the user to test individual patch cords, permanent links and channels for correct polarity. |
| On-board MPO Connector | Equipped with MPO connector on both the Optical Power Meter and Light Source, it eliminates the use of costly and complicated fan-out cords to test MPO fibers. Uncovered ports can put cabling, equipment and testers at risk for contamination and affect performance. Ensuring a covered connection on your tester can protect it from dirt and dust. MultiFiber Pro makes it easy by shuttering the MPO connector giving you greater test reliability and peace of mind. |
| Simple User Interface | The MultiFiber Pro is so successful at simplifying the task of simultaneously representing polarity, power and loss results for 12 fibers that the user interface is patent pending. The power meter enables the users to easily comprehend the measurement results of 12 fibers simultaneously. The light source identifies each fiber within the MPO connector that is being tested. Any individual measurement that fails the test limit is plainly identified to allow root-cause analysis. This powerful yet straightforward test set enables everyone to become a fiber testing expert and increases efficiency in testing data center projects. |
| Select an Individual Fiber | One of the main problems in the data center is the ability to drill down to a single fiber during testing and troubleshooting. MultiFiber Pro can troubleshoot a single fiber within an MPO trunk and provide a single fiber test result. This ability increases MPO connector verification and troubleshooting flexibility with more precise, per-fiber data and reporting. |
| Easy Reporting | The MultiFiber Pro Power Meter stores up to 3,000 test results (or the equivalent of 250 MPO cables) internally which can be uploaded to a PC using the LinkWare™ 7 Cable Test Management Software. LinkWare 7 allows you to manage test results, edit cable ID’s, print professional reports and even export the data into spreadsheet formats. |
| Kits for Every Need | MultiFiber Pro is available in several convenient kit configurations to meet all your cleaning, inspection and verification testing needs. |
| Feature | Parameter |
| Detector Type | InGaAs |
| Calibrated Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Measurement Range | 0 dBm to -50 dBm |
| Test Time Power Measurement Linearity | 6 seconds ±0.1 dB² |
| Power Measurement Uncertainty | ±0.35 dB² |
| Power Measurement Repeatability | < 0.10 dB² |
| Display Resolution, dB or dBm | 0.01 |
| Power Display Units | dBm, mW, µW |
| User-Selectable Limit for Loss | 0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0dB |
| Auto Wavelength Detection | Yes |
| Polarity Detection | Detects A, B, C, and Corning Plug & Play™ Universal Systems polarities |
| 2 kHz Detection | Yes |
| Record Storage | 3000 records, one fiber per record (250 12-fiber cables) |
| External Interface | USB 2.0, full speed |
| Optical Connector | MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm, 50 µm, and singlemode fibers. Connector has a self-closing, protective cover. |
| Power Requirement | 2 AA alkaline batteries |
| Battery Life³ | 30 hours (typical) |
| Automatic Power-Off | 10, 20, 30, or 60 minutes (can be disabled by the user) |
| Low Battery Warning | Low battery icon blinks |
| Operating Temperature | -10ºC to +50ºC |
| Storage Temperature | -20ºC to +50ºC |
| Operating Humidity | 95% (10ºC to +35ºC) non-condensing 75% (35ºC to +45ºC) non-condensing Uncontrolled <10ºC |
| Operating Altitude | 4,000 m |
| Storage Altitude | 12,000 m |
| Vibration | Random 2 G, 5 Hz to 500 Hz |
| Dimensions | 5.8 in x 3.2 in x 1.6 in 14.7 cm x 8.0 cm x 4.0 cm |
| Weight | 10.9 oz 309 g |
| MFTK-MM850-SM1550 | MultiFiber Pro Multimode & 1550 nm Singlemode Kit Includes: MultiFiber Pro Power Meter 850 nm Light Source 1550 nm Light Source Test Reference Cords MPO adapters Magnetic strap attachments Carrying case |
