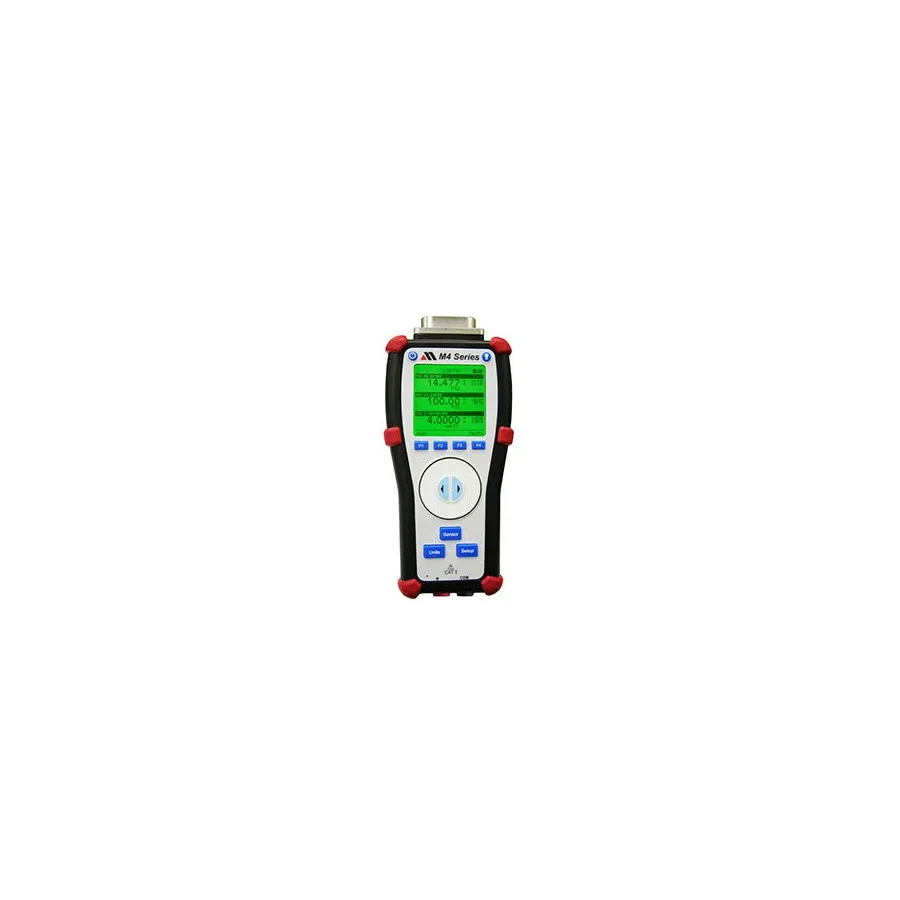

Meriam M400-CI0100-02 Pressure Sensor
Meriam M400-CI0100-02 датчик тиску
Запитати ціну
Meriam M400-CI0100-02 is a pressure sensor with -15 to 100 psi range and 2-port manifold configuration.
Деталі продукту
| Модель | M400-CI0100-02 |
| Виробник | Meriam |
| Категорія | Digital Pressure Gauges |
| Наявність | На замовлення |
Опис
Meriam M400-CI0100-02 — датчик тиску з діапазоном -15 до 100 psi та конфігурацією 2-портового колектора.
Характеристики
| Series | M4 Series |
| Accuracy | ±0.025% of Full Scal |
| Connection | Pressure: 1∕8” NPT (female) and Electrical: Standard banana jacks on ¾” centers Firmware updates, data retrieval: USB mini-B (female) |
| DC Current | ±100 mA DC measure, 0 – 24 mA DC source, 1-24 mA sink at 3-50 VDC external power |
| DC Voltage | ±50 VDC measure, 0-24 VDC source |
| Display | 128 x 128 pixel (2” x 2” viewable) display with adjustable backlight (green) and attention backlight (red) |
| Includes | Soft Carrying Case, Lead Set, Batteries, SD Card, And User Manual |
| Length | 8.5 in. |
| Media Type | DN sensors: Non-isolated for clean, dry, non-corrosive gases only (Brass, 316LSS, Silicon gel) DI sensors: Isolated for fluids compatible with 316L SS and Viton GI, CI, AI sensors: Isolated for fluids compatible with 316L SS |
| Operating Temperature | -20 to 50°C |
| Power | Portable service: Four (4) 1.5 Volt AA alkaline batteries provides 30+ hours of continuous measurement service And Operation with PC: Power over USB using USB type A to mini-B cable (requires high power 500 mA port) |
| Product Type | Pressure Sensors |
| Resolution | Selectable, Accuracy or Precision; 0.001 V/mA or 0.0001 V/mA respecively |
| Storage Temperature | -40 to 60°C |
| Thickness | 2.25 in. |
| Width | 3.75 in. |
| Working Pressure | -15 to 100 psi |
