Keithley 3762 Карта високовольтного мультиплексера

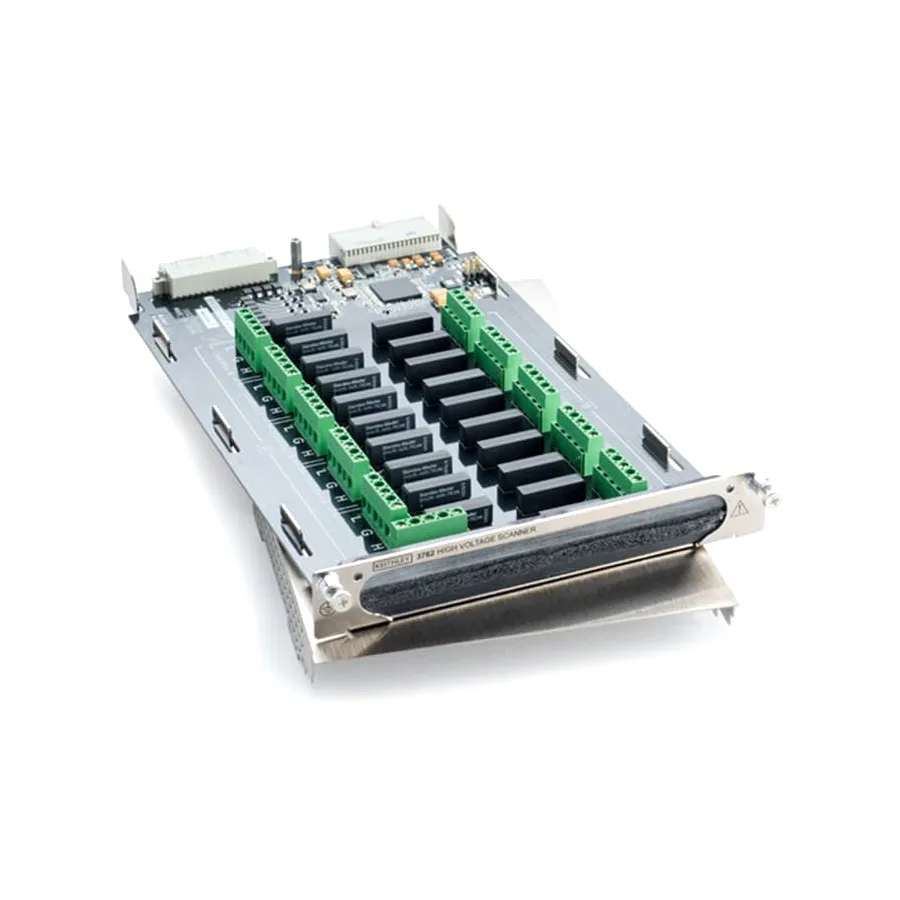

Keithley 3762 High Voltage Multiplexer Card
Запитати ціну
Keithley 3762 is a 10-channel high voltage multiplexer card with dry reed relays for switching voltages up to 1000V at 0.5A with <200mΩ contact resistance.
Деталі продукту
| Модель | 3762 |
| Виробник | Keithley |
| Категорія | Модулі та карти DAQ |
| Наявність | На замовлення |
Опис
Overview
The Keithley 3762 is a 10-channel high voltage multiplexer card designed for use with Series 3700A mainframes. It features dry reed relays and two-pole contact configuration for switching high voltages while maintaining exceptional contact integrity and low noise characteristics.
Key Features
- 10 independent channels with 2 Form A contact configuration
- Maximum switching levels: 1000V, 0.5A, 10W
- Dry reed relay technology with >10⁶ hot switching closures at 1000V, 1mA
- Contact resistance: <200mΩ initial, <2Ω for rated life
- Ultra-low contact potential: <35µV per contact pair
- High channel isolation: >10¹⁰Ω, <10pF
- Screw terminal connectors rated for #16AWG maximum wire size
- Relay drive current: 80mA typical
- Actuation time: <2ms exclusive of mainframe
Applications
- High voltage measurement switching in test and measurement systems
- Automated data acquisition for high voltage testing
- Laboratory and industrial testing with voltage isolation requirements
- Integration into 3706A Series 3700A mainframes for expanded switching capability
Характеристики
| Series | 3701 Series |
