Fluke 9143-A-156 польова метрологічна колодязь

Overview

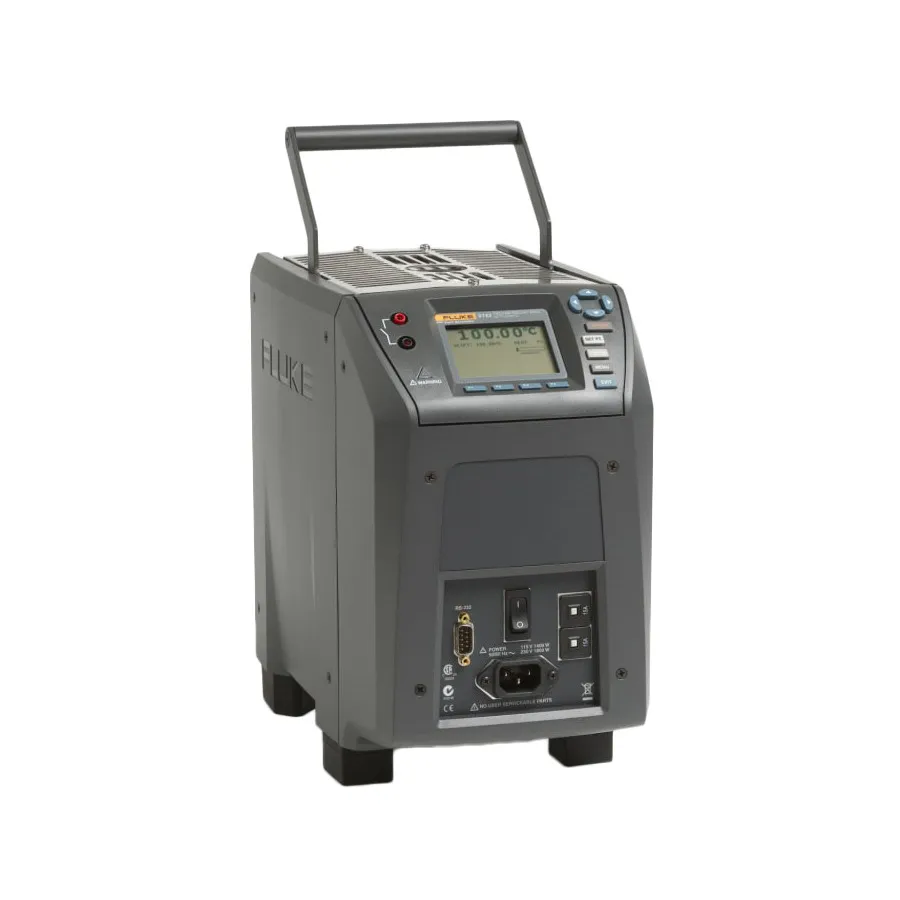

The Fluke 9143-A-156 Field Metrology Well is a precision mid-range dry-block calibrator designed for field temperature calibration of multiple sensor types. It combines metrological performance with exceptional portability, delivering stable, uniform temperature control for transmitter loop calibration, thermocouple verification, and reference thermometry in industrial environments.

Key Features

• Temperature range: 33°C to 350°C at 23°C ambient
• Display accuracy: ±0.2°C full range
• Stability: ±0.01°C to ±0.03°C depending on temperature point
• Radial and axial uniformity for consistent multi-probe calibration
• Immersion depth: 150 mm (5.9 inches)
• Large LCD display visible in variable lighting conditions
• Visual and audible stability indicator
• Lightweight and portable design (less than 8.2 kg)
• Built-in gradient-temperature compensation for stable operation in variable field environments
• Pre-programmed calibration routines and menu navigation
• One-button temperature set point adjustment
• Onboard documentation capabilities

Applications

• Temperature transmitter loop calibration
• Thermocouple calibration and verification
• RTD and PRT calibration
• Industrial thermometer verification
• Thermostatic switch testing
• Reference temperature source for comparison measurements

Included Accessories

• Insert A (imperial miscellaneous holes: 1/8 in, 3/16 in, 2×1/4 in, 3/8 in)
• User's manual and technical manual on CD
• RS-232 serial interface cable
• Report of calibration and insert removal tool
