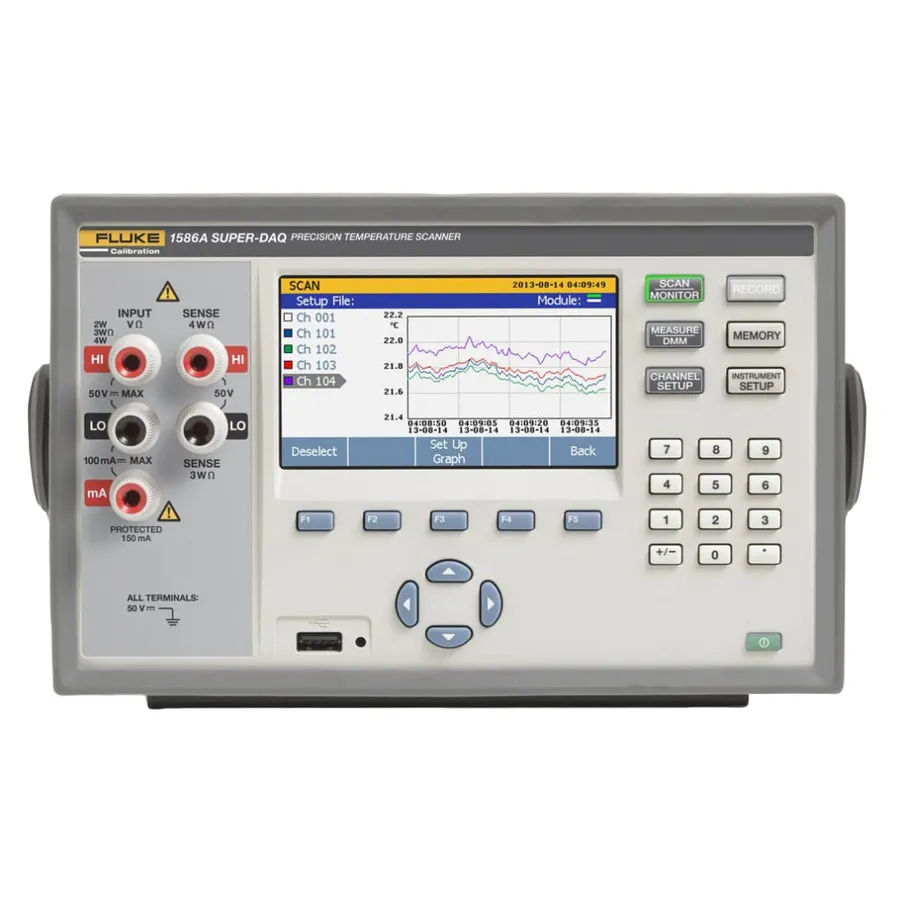

Fluke 1586A/2HC 120/C Super-DAQ сканер температури з акредитованою калібрацією

Overview

The Fluke 1586A/2HC 120/C Super-DAQ is a precision temperature data acquisition system delivered with accredited factory calibration. Designed for calibration laboratories and critical measurement applications requiring certified accuracy and traceability. It scans and records temperature, DC voltage, DC current, and resistance for up to 40 input channels at speeds up to 10 channels per second.

Key Features

• Accredited calibration provided for certified measurement accuracy
• Best-in-class temperature measurement accuracy: PRTs ±0.005°C, Thermocouples ±0.5°C, Thermistors ±0.002°C
• Up to 40 isolated universal input channels
• Scan speed up to 10 channels per second
• Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
• Real-time color graphing for up to four channels simultaneously
• Automated sensor calibration control for Fluke temperature sources
• 20 MB internal memory with USB and LAN data transfer
• Administrator and user profiles for data security and test traceability

Applications

• Precision sensor calibration in accredited laboratories
• Thermal mapping and temperature validation
• Process control verification and compliance documentation
• Pharmaceutical and biotechnology quality assurance
• Aerospace and automotive thermal testing
