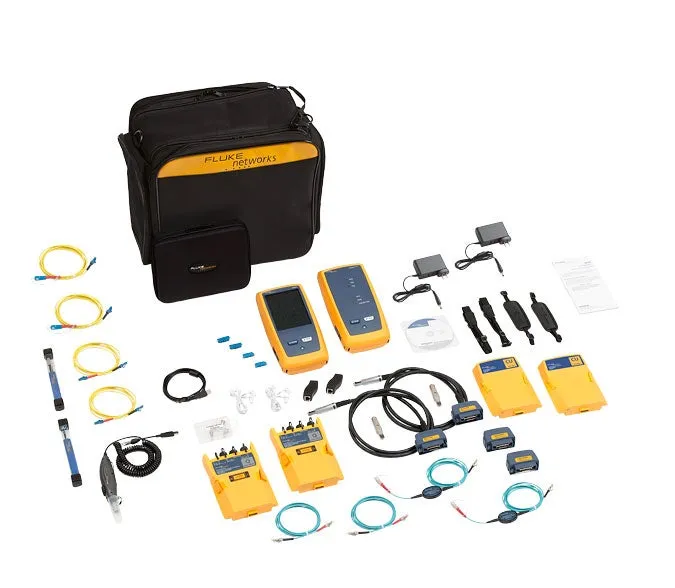

Fluke Networks DSX2-8000QI Versiv аналізатор кабелів з Quad OLTS та інспекцією

Overview

Fluke Networks DSX2-8000QI Versiv is a comprehensive cable and fiber analyzer combining the DSX CableAnalyzer with CertiFiber Pro Quad OLTS modules and fiber inspection capabilities. This solution provides complete certification for Cat 5e through Cat 8 copper cabling and multimode/single-mode fiber networks with Level VI/2G accuracy to 2 GHz, integrated Wi-Fi for LinkWare Live connectivity, and advanced project management features.

Key Features

• DSX-8000 CableAnalyzer with Level VI/2G accuracy (2 GHz)
• CertiFiber Pro Quad OLTS for four-wavelength fiber testing (50µm, 62.5µm, 9µm modes)
• USB video inspection camera with multiple tip sets for fiber endface analysis
• Copper certification: Cat 5e to Cat 8 with 8-second Cat 6A test time
• Fiber testing: two wavelengths in 3 seconds with comprehensive diagnostics
• Support for balance measurements and alien crosstalk testing (TCL, ELTCTL, CDNEXT, CMRL)
• Capacitive touchscreen with Taptive interface
• ProjX project management with real-time job status tracking
• LinkWare Live cloud service with integrated Wi-Fi for field uploads
• Memory: up to 12,000 Cat 6A test results with full graphics
• Graphical fault location showing crosstalk and distance-to-fault on cable length

Applications

• Large-scale network infrastructure projects with simultaneous copper and fiber certification
• Data center cabling systems
• Campus backbone fiber deployment
• Standards compliance testing (ANSI/TIA, ISO/IEC)
• Multi-wavelength fiber optic network validation
