EA Elektro-Automatik EA-PSB 10080-1000 4U двоспрямований блок живлення постійного струму

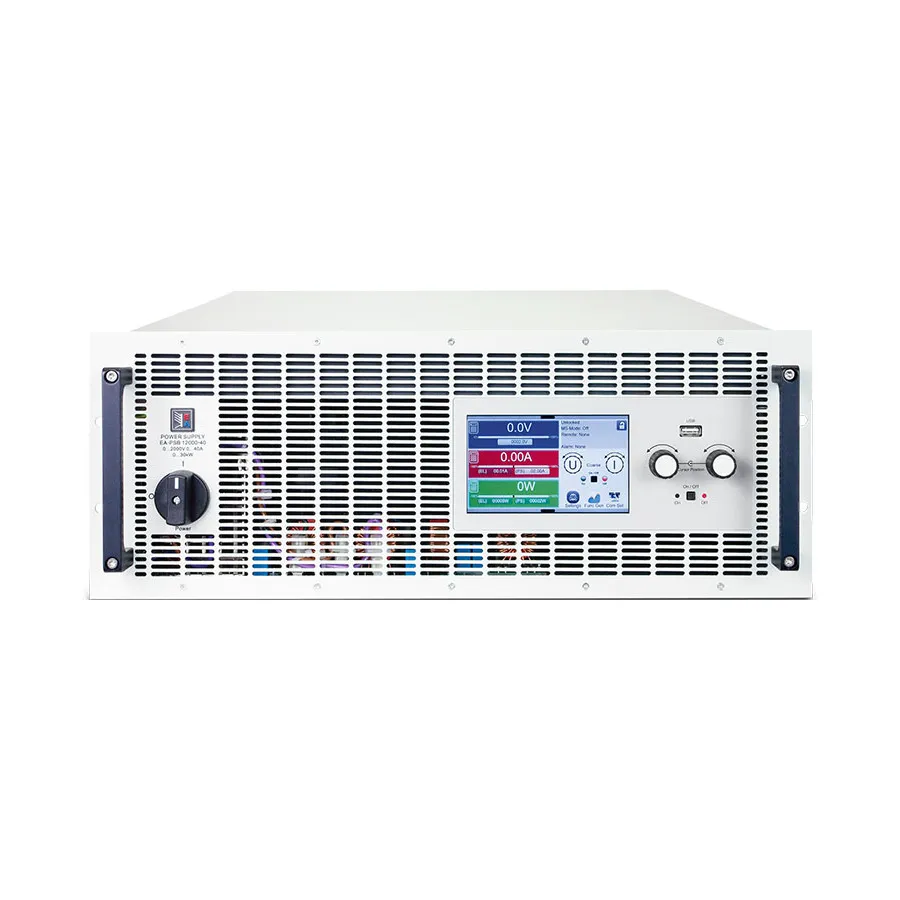

EA Elektro-Automatik EA-PSB 10080-1000 4U Bidirectional DC Power Supply
EA Elektro-Automatik EA-PSB 10080-1000 4U high-power bidirectional supply with 80V/1000A output, 30kW capacity, energy recovery, and comprehensive test functions for industrial battery and power sy...
Деталі продукту
| Модель | EA-PSB 10080-1000 4U |
| Виробник | EA Elektro-Automatik |
| Категорія | Двонаправлені джерела постійного струму |
| Наявність | На замовлення |
Опис
Overview
The EA-PSB 10080-1000 4U is a high-performance programmable bidirectional DC power supply from the PSB 10000 series. This two-quadrant device provides exceptional power capacity of 30kW with regenerative energy recovery, making it ideal for demanding battery testing, power electronics development, and industrial applications. The 4-unit rack-mount configuration supports high-current test scenarios.
Key Features
- Output: 80V, 1000A, 30kW with flexible autoranging capability
- Wide input: 208-480V ±10% three-phase AC with active power-factor correction (typical 0.99)
- Bidirectional two-quadrant operation with regenerative energy recovery to grid (96%+ efficiency)
- Regulation modes: CV, CC, CP, CR with fast crossover
- 5" color TFT display with touch control and intuitive interface
- 16-bit ADCs and DACs with selectable control speeds (Normal, Fast, Slow)
- Integrated function generator with predefined waveforms and arbitrary generator
- Automotive test procedures: LV123, LV124, LV148 compliance
- Battery test mode, battery and fuel cell simulation, MPPT photovoltaic testing (EN 50530)
- Master-Slave and Share-Bus for systems up to 64 units (1920 kW total)
- Extensive interface options: USB, Ethernet, Analog, CAN, CANopen, RS232, Profibus, EtherCAT, Profinet, Modbus
Applications
- High-power battery testing for electric vehicles and energy storage
- On-board charger (OBC) development and validation
- Battery module and pack characterization
- State-of-Health (SOH) assessment for battery reuse and recycling
- Fuel cell stack and system testing
- Solar inverter and photovoltaic system simulation
- High-current load testing and endurance validation
- Multi-unit systems up to 1920 kW for industrial battery facilities
Характеристики
| Maximum Power | 30 kW |
| Output Voltage | 80 V |
| Output Current | 1000 A |
| Input Voltage | 208-480 VAC |
| Interface | USB, Ethernet (100 MBit) for communication, 1 x USB Host for Data Acquisition |
| Display | 5 TFT Color Touch |
| Series | EA-PSB 10000 4U Series |
| Current Accuracy | ≤0.1% FS |
| Current Range Selector | 500-1,499 |
| Dimensions | 19x7x31" |
| Frequency Range | 45-65 Hz |
| IP Rating | IP20 |
| Mounting Type | Rack Mount |
| Number of Outputs | Single Output |
| Operating Temperature Range | 32-122°F |
| Power Range Selector | 30,000-49,999 |
| Relative Humidity Range | ≤80% |
| Resistance Range | 0.003-5 Ω |
| Safety | EN 61010-1 IEC 61010-1 UL 61010-1 CSA C22.2 No 61010-1 BS EN 61010-1 |
| Storage Temperature | -4-158°F |
| Type | Programmable Bi-Directional DC Power Supply |
| Voltage Accuracy | ≤0.05% FS |
| Voltage Range Selector | 50-99.9 |
