Preen AFV-31030 джерело змінного струму

Overview

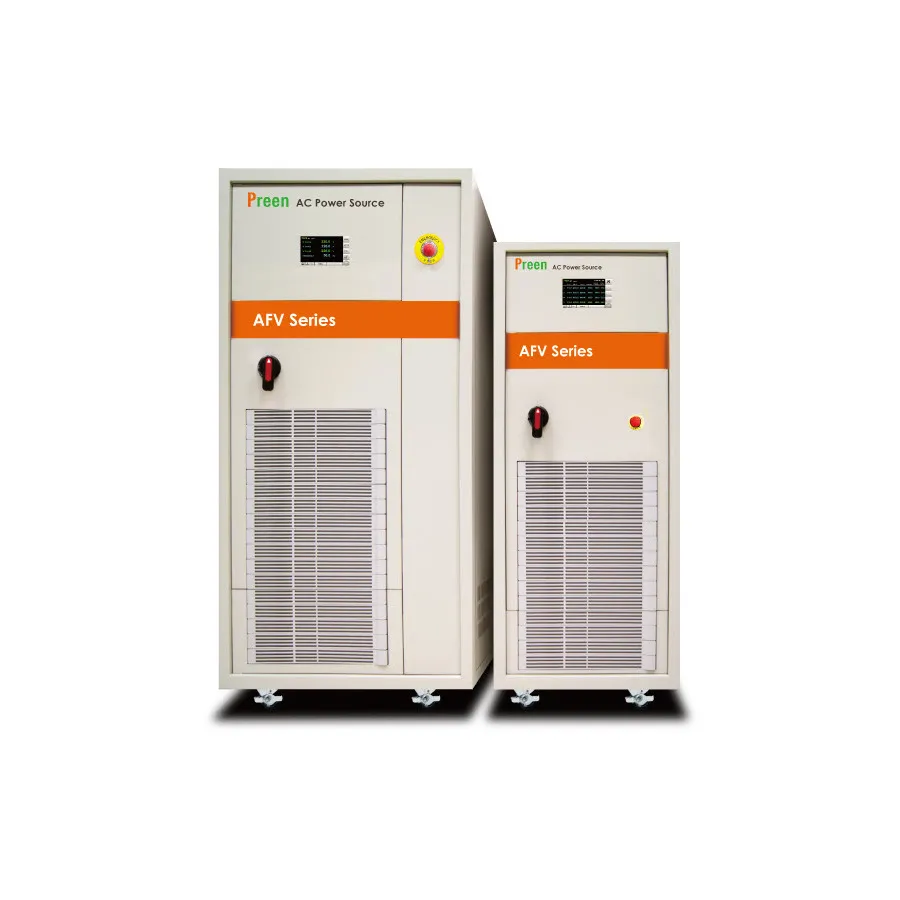

The Preen AFV-31030 is a programmable AC power source designed for industrial testing and simulation. It can be remotely controlled and integrated with automatic testing systems, delivering 30 kVA with precise output voltage and frequency control. The system enables users to quickly and accurately simulate standard and abnormal power conditions for comprehensive product validation across diverse industrial applications.

Key Features

• 30 kVA output power with 310V output voltage at 250A maximum current
• Frequency range 45-500 Hz for comprehensive testing scenarios
• 3-phase input with single-phase output configuration
• Programming Sequence Function with STEP and GRADUAL modes for custom test sequences
• Optional soft start function to reduce inrush current from motor type loads
• Touch screen display for easy operation and monitoring
• Comprehensive protection: overvoltage, overcurrent, overload, input undervoltage, and overtemperature with 20+ error codes and event logging
• Standard RS485 interfaces with optional RS232/GPIB connectivity
• CE mark with high electromagnetic compatibility performance
• Compact patented power module design for easy maintenance and high power density

Applications

• Home appliance testing and validation
• Electrical and electronic equipment testing
• Medical device compliance and performance testing
• Lighting system validation and compliance
• Industrial power condition simulation and abnormal state testing
