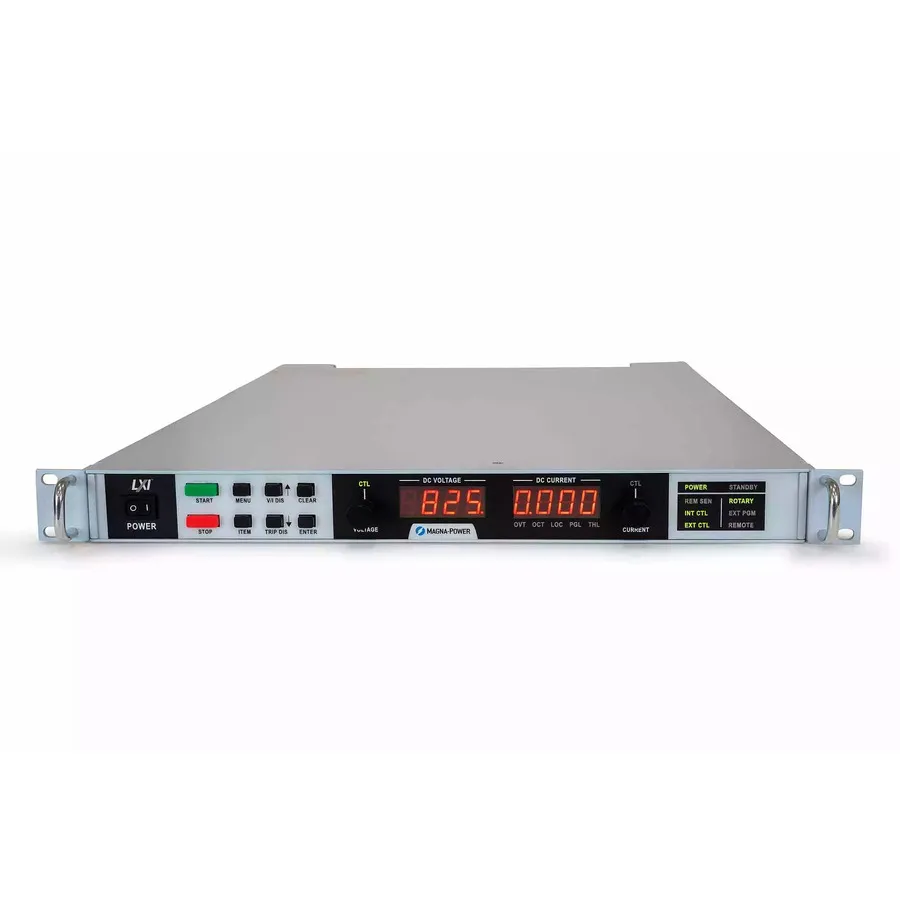

Magna Power SL160-9/UI джерело живлення постійного струму

Overview

The Magna Power SL160-9/UI is a programmable single-output DC power supply from the SL Series, designed for automatic test equipment (ATE) systems and laboratory applications. It delivers 160V at 9A (1.5kW output) in a compact 1U (1.75" height) rack-mount form factor. Built on Magna-Power's current-fed topology and nearly 40 years of power supply innovation, the SL160-9/UI provides the reliability and precision required by system integrators.

Key Features

• 1.5kW output power with 160V/9A maximum ratings
• Compact 1U (1.75" height) rack-mount chassis
• SCPI remote programming API for seamless test system integration
• Master-slave functionality for parallel operation and higher power
• Remote sensing for accurate voltage regulation
• RS232 standard interface with optional GPIB and Ethernet (LXI) modules
• 37-pin external user I/O for flexible system interconnection
• 0-10V external analog inputs for external control
• Programmable over-voltage and over-current protection limits
• High accuracy measurements and fast transient response
• Interlock shutdown input for safety system integration
• Extensive diagnostics: AC phase loss, thermal conditions, fuse status monitoring
• AC mains mechanical disconnect via contactor in standby or fault modes
• NI LabVIEW™ and IVI driver support
• Operating temperature up to 50°C ambient
• Designed and manufactured in the USA; UL/CSA listed, CE Mark

Applications

• Automatic test equipment (ATE) systems for device testing
• Laboratory power supplies for research and development
• Device burn-in and thermal stress testing
• Component characterization and qualification testing
• Systems requiring precision DC power with remote control and diagnostics
