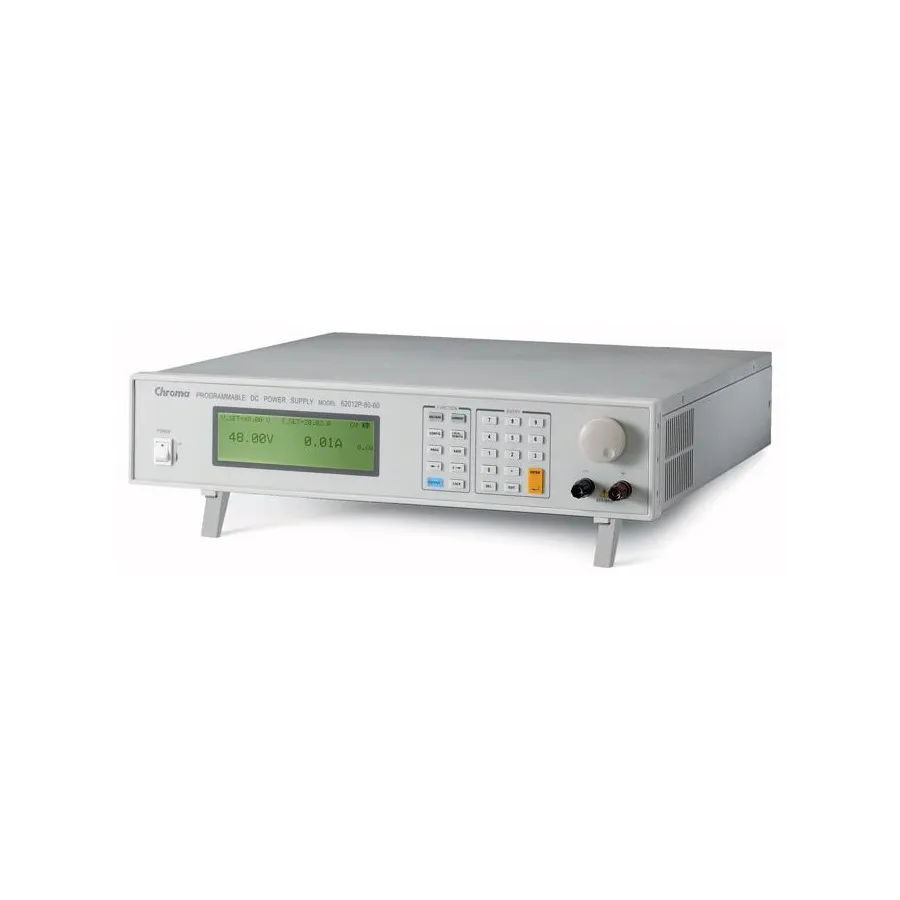

Chroma 62024P-100-50 програмований DC блок живлення

Overview

The Chroma 62024P-100-50 is a 2400W programmable DC power supply with 100V/50A output, part of the 62000P Series. Designed for automated test equipment (ATE) and DC converter testing, this supply features a constant power operating envelope that allows flexible testing across different voltage and current combinations. The supply delivers precision voltage and current readback, the ability to generate complex DC transient waveforms for testing voltage spikes and dropouts, and sophisticated Master/Slave parallel and series operation with automatic current sharing for high-power applications.

Key Features

• Power output: 2400W (100V, 50A)
• Constant power operating envelope for flexible voltage/current combinations
• Precision voltage and current readback
• Complex DC transient waveform generation for spikes and dropout testing
• Master/Slave parallel and series operation with automatic current sharing
• Programmable sequences: 10 programs, 100 sequences with 8-bit TTL output
• Voltage ramp function: 5ms to 99 hours
• Voltage and current slew rate control
• Power Factor Correction (0.95)
• Protection: OVP, current limit, thermal
• Interfaces: RS-232, USB, optional GPIB with SCPI, optional Ethernet/LXI
• Digital encoder knobs, keypad, and function keys
• Remote sense with 5V line loss compensation
• LabView and LabWindows compatible
• CE Certified

Applications

• Automated testing of DC-DC converters
• Inverter voltage dropout testing
• Engine start-up simulation
• Battery automated charging systems
• Electronic product life cycle testing
• Airborne avionics testing
• Multiple-unit configurations via parallel operation for higher power requirements
