Cortek 1208-L тестовий стенд
Cortek 1208-L Test Fixture
Запитати ціну

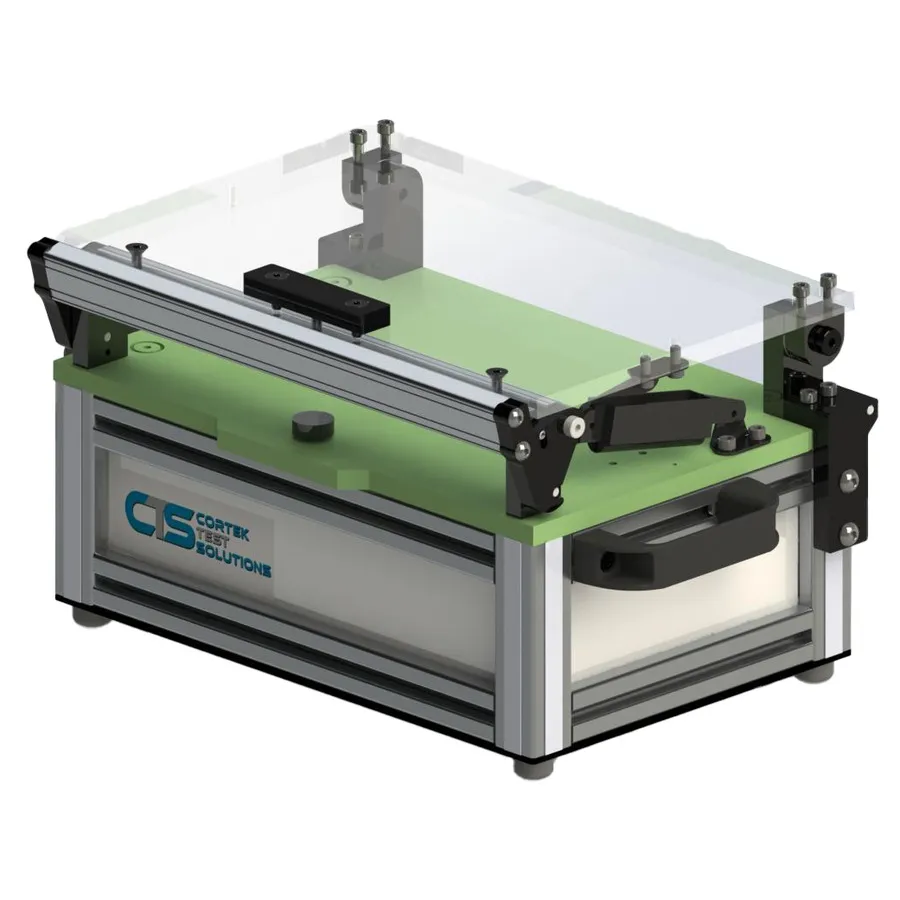

Cortek 1208-L is a clamshell mechanical test fixture for PCB testing with a 9" x 6" x 2" test area, designed for reusable and customizable production testing.
Деталі продукту
| Модель | 1208-L |
| Виробник | Cortek |
| Категорія | Тестові пристосування для перевірки безпеки |
| Наявність | На замовлення |
Опис
Overview
The Cortek 1208-L is a modular clamshell mechanical test fixture designed for high-volume PCB testing, debugging, and programming applications. This fixture provides a cost-effective solution with generous test area and flexible customization options, built on reusable base components that extend product lifecycle and reduce long-term costs.
Key Features
- Spacious test area: 9.0" W x 6.0" D x 2.0" H (UUT may extend beyond area)
- Overall dimensions: 14.9" W x 8.9" D x 7.7" H (with handles and hinges)
- Weight: approximately 11 lbs.
- Fully reusable base components supporting multiple product iterations and generations
- Multiple heights available with custom configurations adaptable in all axes
- Streamlined design with improved accessibility and easier UUT handling
- Mechanical spring hinges made from 6061 aluminum with black anodize finish
- Outboard latching posts simplify UUT insertion and removal
- Rubber feet for work surface stability
- Includes 8 ESD pushers and nuts for component protection
- Easy side panel fabrication for I/O connections, switches, and custom hardware
Applications
- Functional testing of printed circuit board assemblies
- Automated test equipment (ATE) integration
- Component and connector testing
- Product debugging and pre-production validation
Характеристики
| Product Type | Test Fixture |
| Width | 14.9" |
| Depth | 8.9" |
| Height | 7.7" |
| Product Weight | 11 lb. |
| Alternate Product Number | 1208 |
