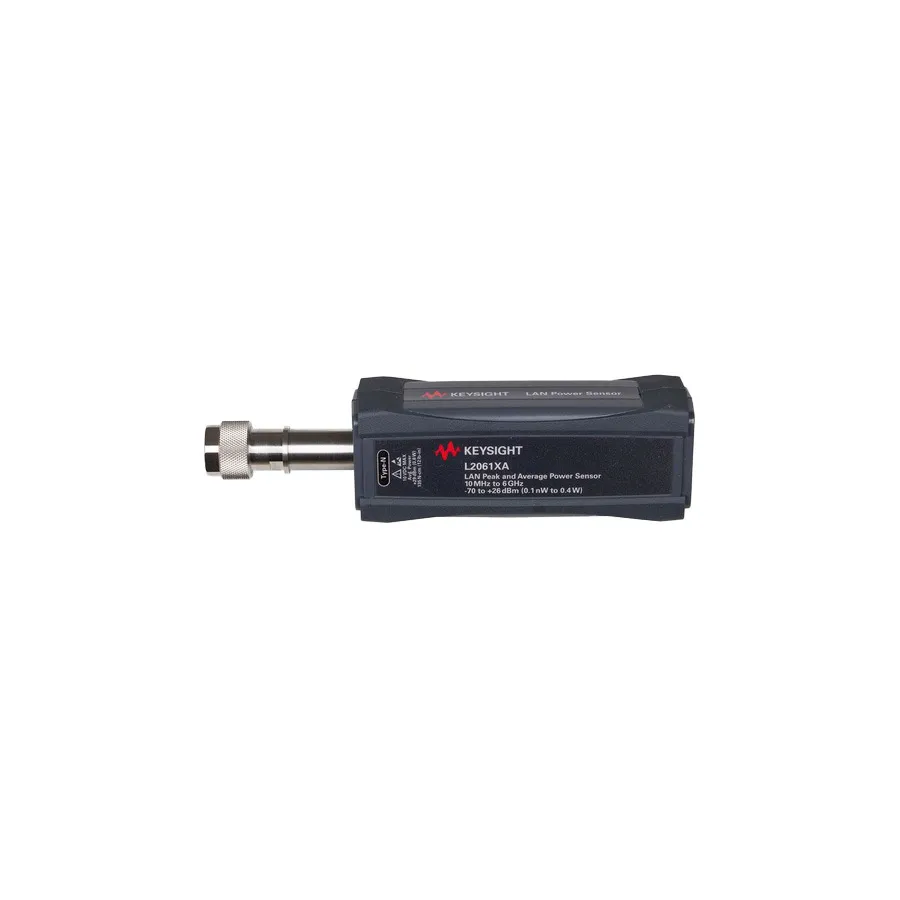

Keysight L2061XA/100/U2034A LAN датчик піку та середньої потужності

Overview

The Keysight L2061XA/100/U2034A is a complete LAN-based peak and average power sensor solution for accurate RF signal measurement from 10MHz to 6GHz. This standard configuration includes a Type N male connector and 5-foot LAN cable for immediate deployment. With wide dynamic range of -70 to +26dBm, fast real-time measurement at 50,000 readings per second, and included BenchVue software, it enables repeatable, automated power measurement with minimal setup time.

Key Features

• Frequency range of 10MHz to 6GHz for cellular and RF testing
• Wide dynamic range of -70 to +26dBm for comprehensive signal level coverage
• Fast real-time measurement speed of 50,000 readings/sec
• Variable sampling rate capability up to 1M samples/sec with extended memory storage
• Zero dead time measurement ensures no pulse loss in continuous monitoring
• Peak and average power measurement modes for complete signal analysis
• Average mode time-selectivity function for flexible measurement strategies
• Internal zero and automatic calibration for reduced uncertainty
• LAN connectivity enables remote control and test sequence automation
• Type N male connector standard for compatibility with RF test equipment
• Includes 5-foot LAN cable for immediate installation
• BenchVue software (BV0007B) included for data logging, visualization, and test automation

Applications

• Cellular and wireless base station testing
• Modulated RF signal analysis and troubleshooting
• Manufacturing production validation and throughput testing
• System integration and acceptance testing
• Field service and on-site power measurements
