Bird 7027-1-524001-1414 напівпровідниковий датчик імпульсу

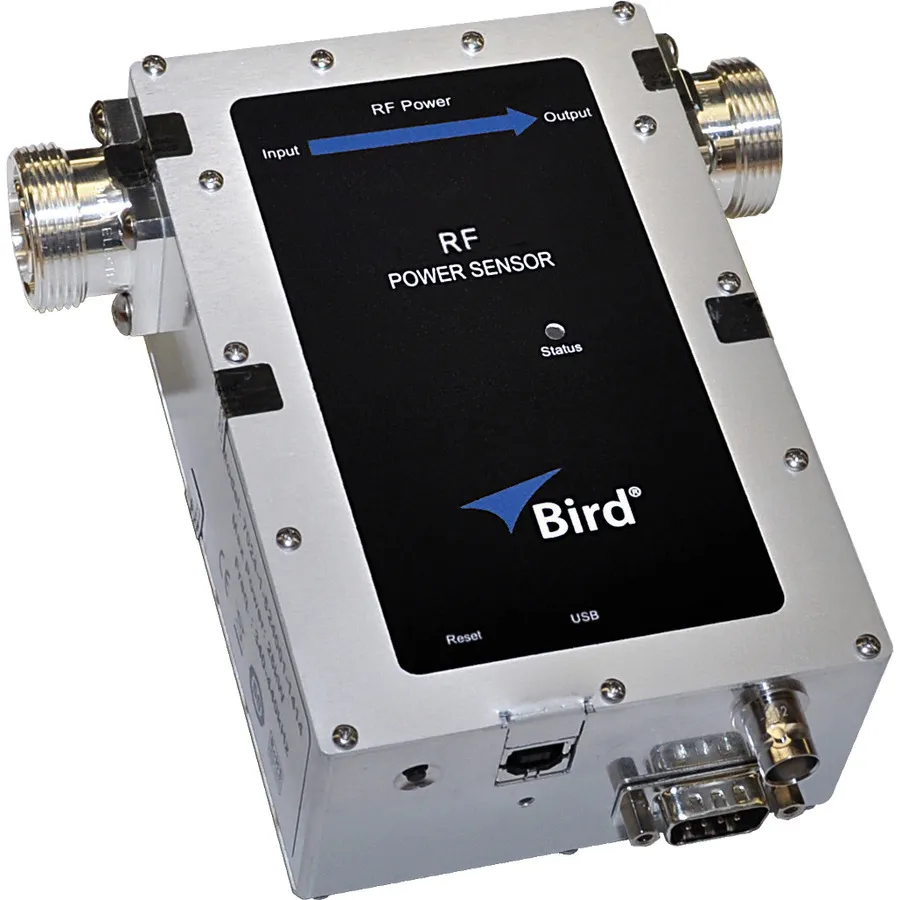

Bird 7027-1-524001-1414 Semiconductor Pulse Sensor
Bird 7027-1-524001-1414 Semiconductor Pulse Sensor measures pulsed RF 25W–25kW at 400 kHz with 1% accuracy, time domain gating, pulse width to 1µs, rep rate to 100 kHz, NIST-traceable.
Деталі продукту
| Модель | 7027-1-524001-1414 |
| Виробник | Bird |
| Категорія | Датчики РЧ-потужності |
| Наявність | На замовлення |
Опис
Overview
The Bird 7027-1-524001-1414 is a specialized RF power sensor designed for semiconductor testing and development applications requiring precise pulsed signal measurements. Operating at 400 kHz with a power range of 25W to 25kW, this sensor delivers 1% accuracy across its dynamic range. It features time domain display capabilities with gated power measurements, enabling detailed analysis of pulse characteristics including width and repetition rates. NIST-traceable calibration ensures measurement reliability without field calibration requirements.
Key Features
- Power range: 25W to 25kW
- Operating frequency: 400 kHz
- 1% accuracy at calibrated frequencies
- Time domain display for pulse analysis
- Gated power measurements with up to four independent gate sets
- Pulse width measurement capability down to 1 microsecond
- Pulse repetition rate measurement from 10 Hz to 100 kHz
- Harmonic filtering for clean measurements
- External synchronization input
- NIST-traceable calibration with no field calibration required
- SCPI command set for automation
- 7/16 inch Female connectors (x2)
Applications
- Semiconductor device testing and characterization
- High-power pulsed RF system development
- Laboratory and production line measurements
- Semiconductor fabrication facilities
- Radar and communications system testing
- RF source optimization and validation
Характеристики
| Connector Type | 7/16 (f) |
| Series | 7027 Series |
| Impedance | 50 Ohms |
Запит ціни
