Keysight N1912A двоканальний манометр потужності

Overview

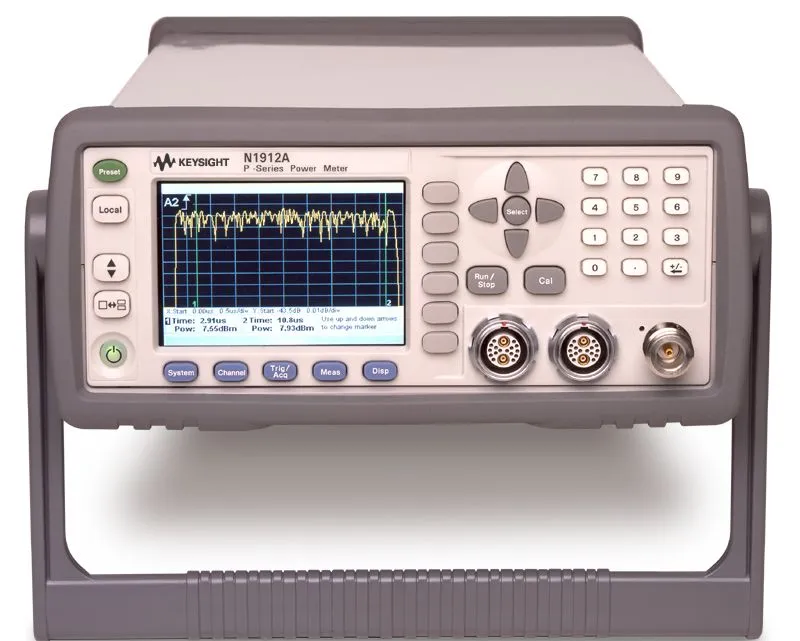

The Keysight N1912A is a P-Series dual-channel power meter providing simultaneous measurement of two independent RF signals. It delivers peak, average, and pulse analysis with integrated BenchVue software support for automated control, data logging, and measurement visualization.

Key Features

• Dual-channel simultaneous power measurement
• 30 MHz video bandwidth with 100 Msample/s real-time single-shot capture
• Peak, average, peak-to-average ratio, rise time, fall time, and pulse width measurements
• 22 predefined measurement formats (WiMAX, DME, HSDPA, etc.)
• Comprehensive pulse analysis with auto-scale, auto-gate, and duty cycle calculation
• Internal zeroing and calibration capability
• LXI-C compliant with USB, LAN, and GPIB connectivity
• BenchVue software integration for automated testing and analysis
• Difference and ratio math functions (A-B, B-A, A/B, B/A)
• High-speed CCDF statistical analysis

Key Specifications

• Channels: 2 (Dual Channel)
• Measurement Frequency Range: 50 MHz to 40 GHz (with N192xA wideband sensors)
• Power Range: -70 to +44 dBm (with standard sensors)
• Sensor Compatibility: N192xA, 8480 series, E-series, E932x power sensors
• Calibration Cycle: 2 years

Applications

• Simultaneous dual-channel RF and microwave power measurement
• Pulse characterization and analysis in complex RF systems
• Wireless device testing with multiple signal paths
• Production test systems requiring two-channel correlation analysis
