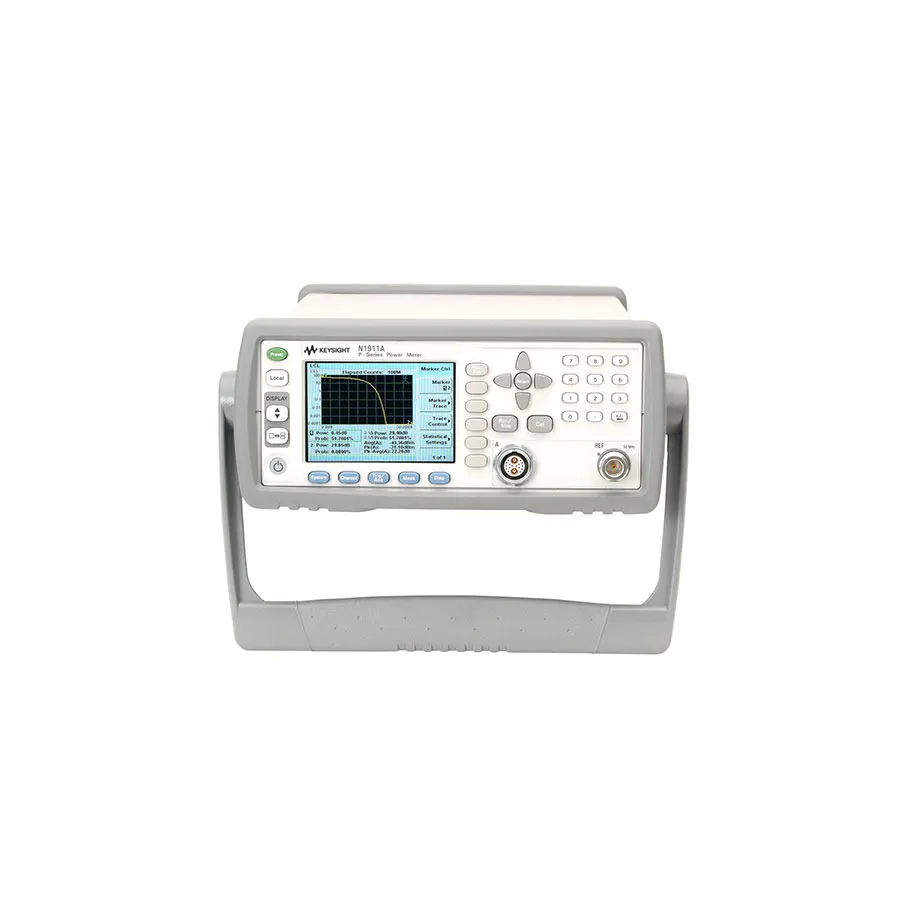

Keysight N1911A/101 манометр потужності

Overview

The Keysight N1911A/101 is a P-Series single-channel power meter featuring front panel sensor and power reference connectors. It provides accurate peak, average, and pulse measurements with integrated real-time capture and advanced analysis capabilities. The instrument is supported by BenchVue software for easy control, data logging, and measurement visualization.

Key Features

• Front panel sensor and power ref connectors for accessible connectivity
• 30 MHz video bandwidth with 100 Msample/s real-time capture
• Peak, average, peak-to-average ratio, rise time, fall time, and pulse width measurements
• 22 predefined measurement formats (WiMAX, DME, HSDPA, etc.)
• Internal zeroing and calibration capability
• LXI-C compliant with USB, LAN, and GPIB interfaces
• Integrated BenchVue software license for automated testing and visualization
• Statistical analysis with Complementary Cumulative Distribution Function (CCDF)

Key Specifications

• Measurement Frequency Range: 50 MHz to 40 GHz (with N192xA sensors)
• Power Range: -70 to +44 dBm (with standard sensors)
• Sensor Compatibility: N192xA, 8480 series, E-series, E932x power sensors
• Calibration Cycle: 2 years

Applications

• Pulse power and peak detection in RF systems
• Wireless signal testing and validation
• Integrated test rack systems with accessible front panel connectivity
• Production test environments for RF and microwave devices
