Keysight X8712AD RF детектор подій

Overview

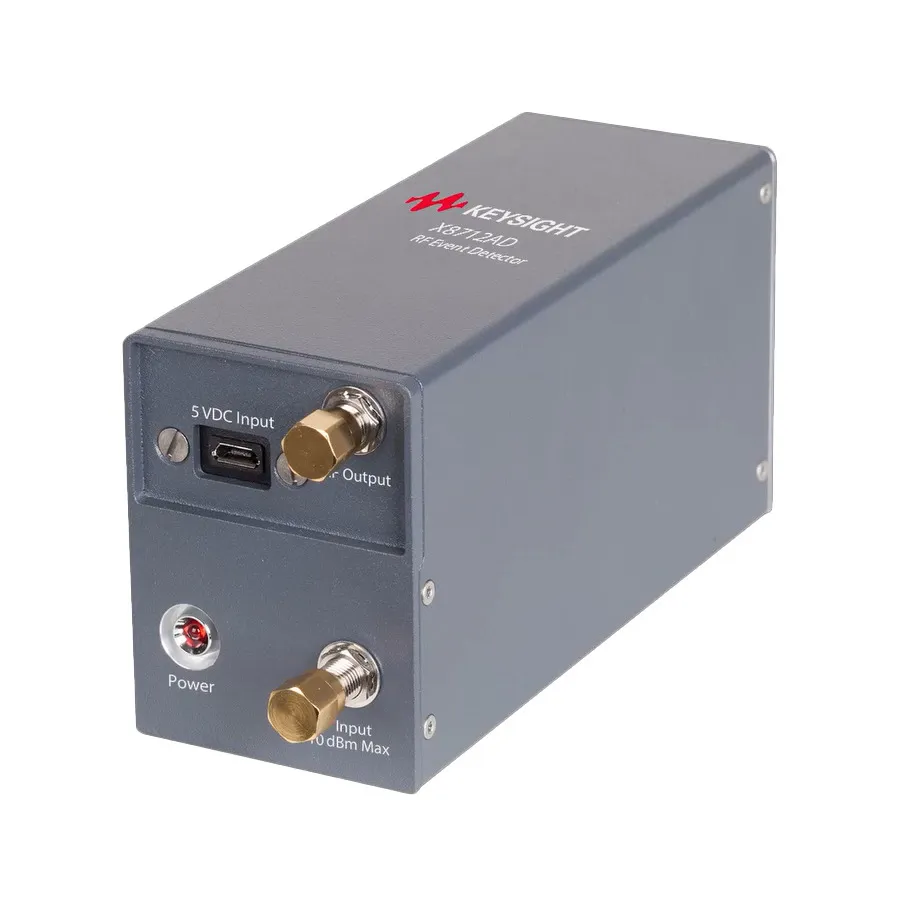

The Keysight X8712AD RF Event Detector identifies RF or DC events from IoT devices and aligns them with current consumption at the subsystem or event level. Operating within a frequency range of 100 MHz to 2.9 GHz, it measures power from -40 to 0 dBm with an accuracy of ±3 dB. The device features a built-in log detector that outputs a voltage proportional to the RF input signal.

Key Features

• Frequency range: 100 MHz to 2.9 GHz
• Power measurement range: -40 to 0 dBm with ±3 dB accuracy
• Built-in log detector for RF-to-voltage conversion
• 1x2 power divider for dual device connection
• Event-based power analysis capability

Applications

• IoT device battery life optimization and analysis
• Design weakness identification through current consumption mapping
• RF event detection and correlation with subsystem power consumption
