Keysight E3661B/AW3 Стійка-шафа

Overview

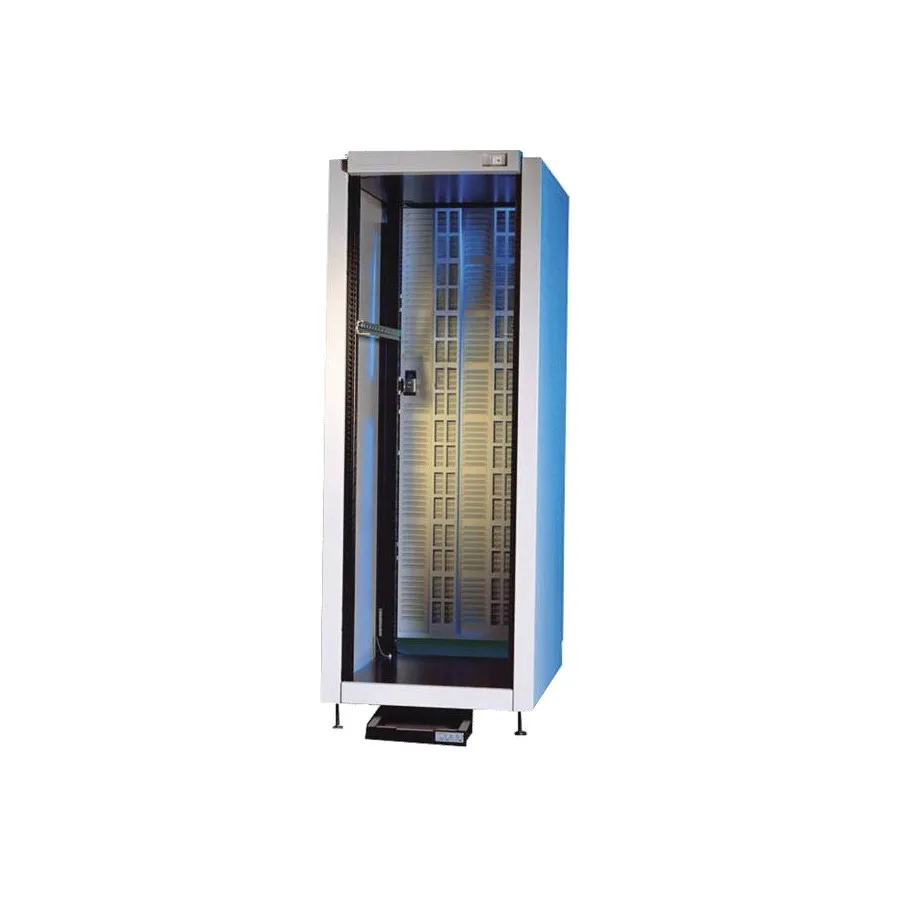

The Keysight E3661B/AW3 is a fully assembled 1.6-meter rack cabinet featuring an integrated 110 VAC power distribution unit. Engineered for professional laboratory and production environments, this enclosure combines thermal management, structural integrity, and convenient power distribution to streamline equipment installation and operation.

Key Features

• Fully assembled and ready to use
• Height: 1.6 m with 32 EIA unit capacity
• Factory-installed 110 VAC power distribution unit (PDU)
• Vented top design for superior thermal management
• Solid base with leveling screws
• Retractable anti-tip foot
• Concealed lifting hooks (500 lbs per hook; 1,800 lbs maximum rack load)
• Four 3-inch heavy-duty casters for mobility
• Cold-rolled steel construction (13 Ga frame, 18 Ga panels)
• One set of Keysight instrument rails included
• Forehead bezel with lighted safety switch
• Quartz gray finish

Cable Management

The cabinet features 100 mm of internal space at the rear for power distribution and cable routing. Cables route out the bottom of the rack for clean organization and improved accessibility to rear connections.

Thermal Performance

Natural convection ventilation through the vented roof and rear door effectively removes system-generated heat, protecting sensitive instruments from thermal buildup in compact rack-mounted configurations.

Applications

• Automated test equipment (ATE) systems
• Production test stations
• Laboratory measurement centers
• Data acquisition and monitoring systems
