Watlow F4DH-KKKK-21RG двоканальний контролер

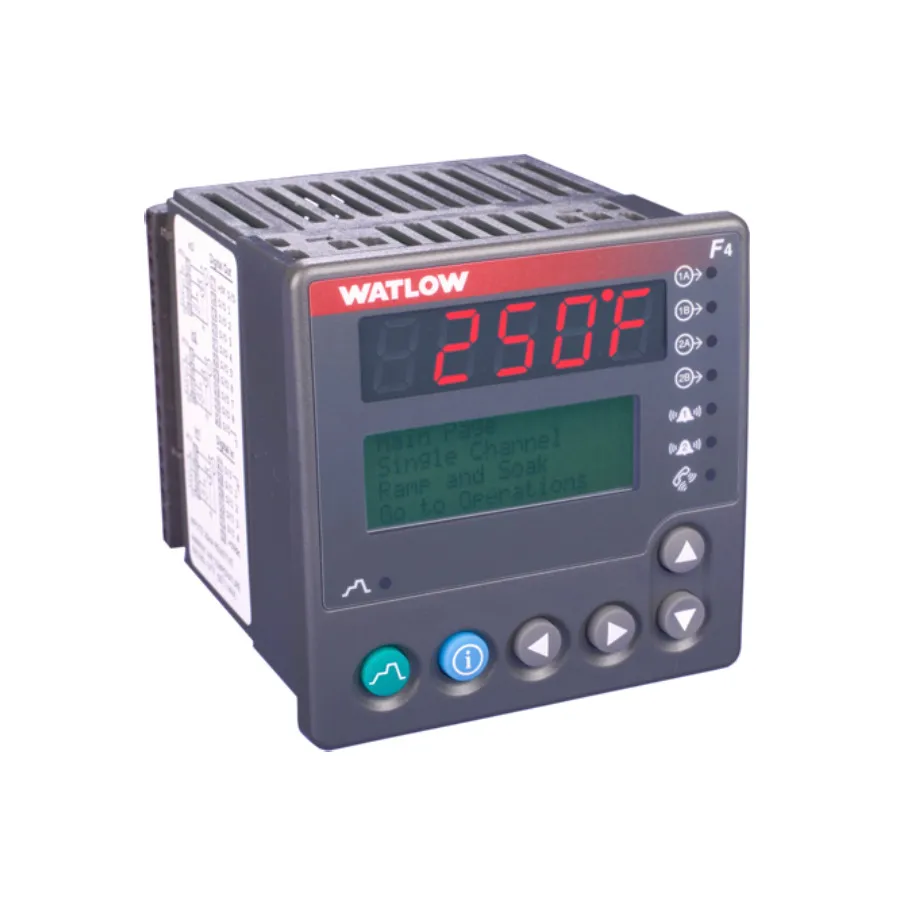

Watlow F4DH-KKKK-21RG Dual Channel Ramping Controller
Запитати ціну
Watlow F4DH-KKKK-21RG is a 1/4 DIN dual-channel ramping temperature controller with 256-step programmable memory, 40-profile ramp/soak capability, and high-definition LCD interface.
Деталі продукту
| Модель | F4DH-KKKK-21RG |
| Виробник | Watlow |
| Категорія | Контролери технологічних процесів |
| Наявність | На замовлення |
Опис
Overview
The Watlow F4DH-KKKK-21RG is a Series F4 industrial ramping temperature controller in 1/4 DIN form factor, engineered for demanding ramp/soak control applications. Featuring a 16-bit microprocessor and high-definition four-line LCD display, it delivers precise temperature control and intuitive operation. Competitively priced and easy to set up, it is ideally suited for environmental chamber, furnace, and oven applications.
Key Features
- Dual-channel temperature control with independent ramp/soak programming
- 256-step guided programming with 40-profile ramp and soak capability
- High-definition four-line LCD controller interface for easy programming and configuration
- 16-bit microprocessor for accuracy and reliable performance
- Four independent solid-state Form A relay outputs (0.5A each)
- Auxiliary retransmit module with dual outputs (0-5, 1-5, 0-10 VDC, 0-20 mA, 4-20 mA options)
- 100-240 VAC/VDC input power range
- 100Ω RTD temperature sensor with English language interface
- Standard display with red/green LED indicators
- Proven industrial performance for demanding temperature control applications
Applications
- Environmental chamber temperature profiling
- Furnace and oven thermal process control
- Heat treatment and curing processes
- Thermal cycling and ramp/soak testing
- Manufacturing and laboratory equipment temperature management
Характеристики
| Power Supply | 100-240VAC/VDC |
