Keysight B1505A аналізатор потужних пристроїв
Keysight B1505A Power Device Analyzer
Keysight B1505A Power Device Analyzer enables characterization of high-power devices from sub-picoamp to 3000V and 40A with high-voltage and high-current modules.
Деталі продукту
| Модель | B1505A |
| Виробник | Keysight |
| Категорія | Аналізатори електроенергії |
| Наявність | На замовлення |
Опис
Overview

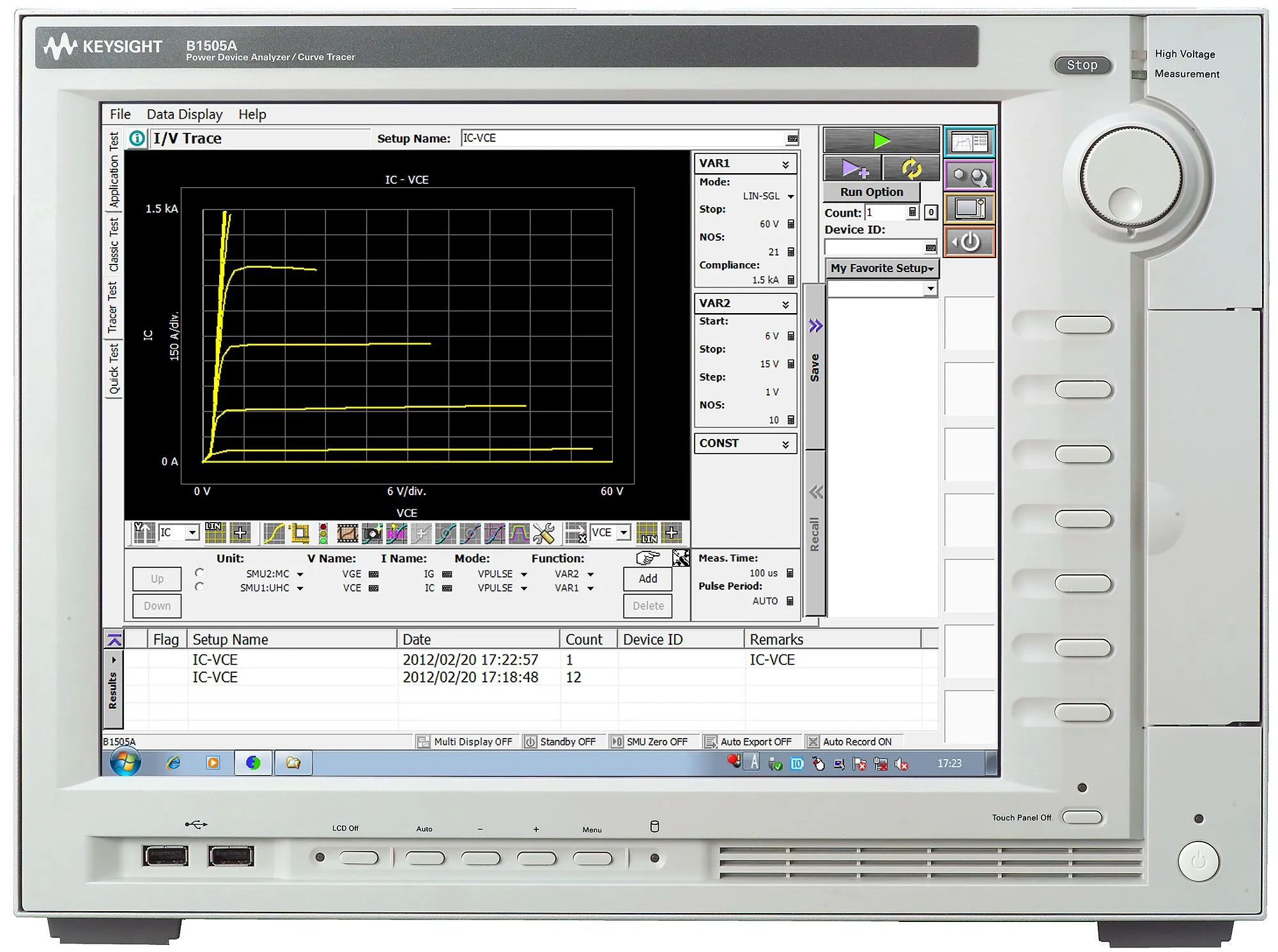

The Keysight (formerly Agilent) B1505A is a Power Device Analyzer and Curve Tracer providing the only single-box solution for characterizing high-power devices from sub-picoamp to 3000 volts and 40 amps. The ten-slot modular construction allows configuration with separate high-current (HCSMU) and high-voltage (HVSMU) modules, plus high-power SMU (up to 1 A/200 V) and multi-frequency capacitance measurement (up to 5 MHz).
Key Features
- Measurement range: sub-picoamp to 3000V and 40A
- Modular construction with ten slots for flexible configuration
- High-current (HCSMU) and high-voltage (HVSMU) measurement modules
- High-power SMU: up to 1 A/200 V
- Multi-frequency capacitance measurement: 1 kHz to 5 MHz
- Curve tracer functionality with rotary knob control for intuitive parameter evaluation
- Built-in hard disk drive for automatic data storage
- USB and portable media support for data transfer
Test Fixture
The B1505A features a comprehensive test fixture designed for safety and versatility. The large fixture adapter accommodates diverse power device package types including power MOSFETs, diodes, and IGBTs, regardless of size or shape. Built-in interlock mechanisms ensure safe application of high voltages and currents.
Module Options
| Module | Specifications |
|---|---|
| B1510A HPSMU | Up to 200 V, 1 A force, 10 fA current resolution |
| B1512A HCSMU | 20 A/20 V (Pulsed); 1 A/40 V (DC) |
| B1513A HVSMU | 1500 V/8 mA; 3000 V/4 mA (Pulsed & DC); up to 40 A/20 V with Dual HCSMU |
| B1520A MFCMU | 1 kHz to 5 MHz, up to 3000 V DC bias using bias-T |
Applications
- Wide bandgap power device characterization (SiC, GaN)
- Power MOSFET and IGBT evaluation
- Discrete power device testing
- High-voltage and high-current device characterization
- Power device fault detection and analysis
Характеристики
| High Frequency (range) | 1MHz <= 10MHz |
Запит ціни
Keysight B1505A аналізатор потужних пристроїв
